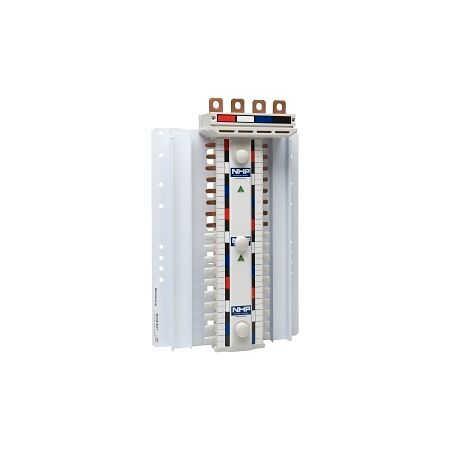

DIN Busbar Chassis 400A 36 Way | 4 Pole Top Feed | Encapsulated by NHP
DIN busbar chassis with 400A rated current and 36 poles—ideal for industrial power distribution. Built for durability with encapsulated housing and IP20 protection, perfect for switchboards and distribution boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 400A 36 Way 4Pole Top Feed RNWNBN
Brand: NHP
SKU: NC436184TF
Alternatively Known As: DIN Busbar Chassis, Power Distribution Busbar, Electrical Busbar System
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 36
- Nominal Voltage: 415 V
- Short Time Withstand Current (ICW) 0.1 sec: 30 kA
- Short Time Withstand Current (ICW) 0.3 sec: 25 kA
- Short Time Withstand Current (ICW) 1 sec: 13 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 350mm x 82mm x 400mm
- Weight: 10 kg
Key Features
- 400A rated current for high power applications.
- 36 poles with 18mm pitch for versatile configurations.
- Encapsulated material housing for enhanced durability.
- IP20 protection rating suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for efficient power distribution, reducing energy loss.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NC Busbar Chassis 400A 36 Way 4Pole Top Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
