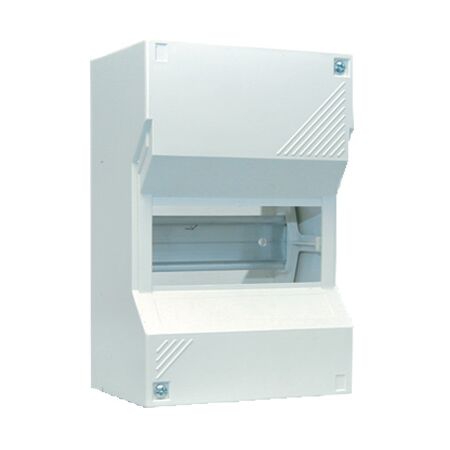

DIN Loadcentre Plastic 18 Pole | High Impact Polycarbonate | IP30 Rated | Cream by B&R Enclosures
DIN loadcentre with 18 poles and high impact polycarbonate construction—ideal for metering and control equipment protection. Built for durability, with IP30 rating and hinged cover for easy access.
Sign in
Please login to continue to your account.
Product Name/Title: DIN Loadcentre Plastic 18 Pole, with accessories
Brand: B&R Enclosures
SKU: LCP18
Alternatively Known As: DIN Rail Loadcentre, Plastic Enclosure, Electrical Control Box
- Part Number: LCP18
- Poles: 18
- Material: High impact resistant electrical grade polycarbonate
- Color: Cream RAL9001
- IP Rating: IP30
- Glow wire test: AS/NZS 60695: 960°
- Dimensions (H x L x W): 210mm x 100mm x 350mm
- Weight: 1.5 kg
- Designed for both single and multi-phase installations
- Robust surface mount plastic DIN rail loadcentre with hinged cover to protect control equipment
- Standard circuit ID labels
- Hinged cover
- Manufactured from high impact resistant electrical grade polycarbonate
- Professional installation is recommended for optimal safety and compliance.
- Metering applications
- Protection of control equipment
- Complies with AS/NZS 60695 for safety and performance standards.
- Durable materials reduce the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The Plastic DIN Rail Enclosures are available now for immediate purchase, ideal for metering applications and control equipment protection.
