DIN Rail 3P Whole Current Meter 100A | Class 1 Accuracy | RS485 Modbus Pulse Output | Eltech
Monitor energy consumption with this DIN Rail 3P whole current meter, featuring a 100A capacity and Class 1 accuracy. Ideal for power quality monitoring in industrial and residential systems, it supports RS485 Modbus communication for efficient energy management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

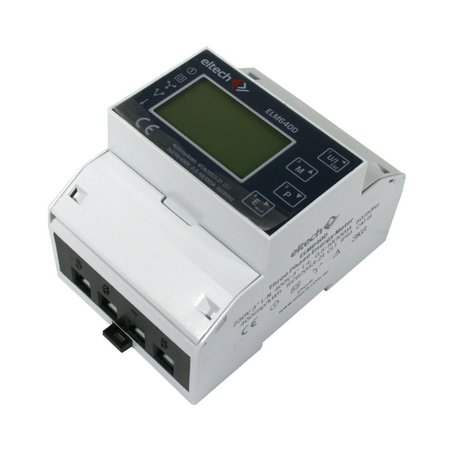

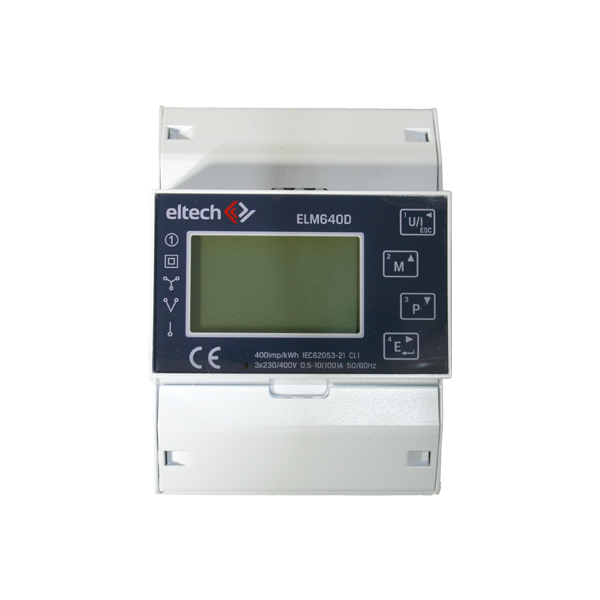

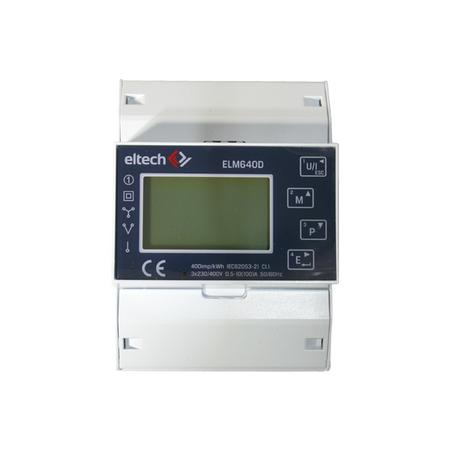

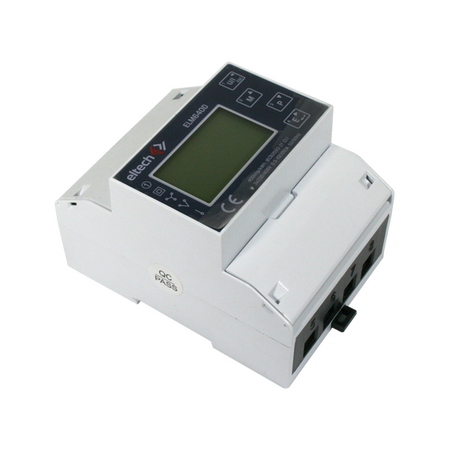

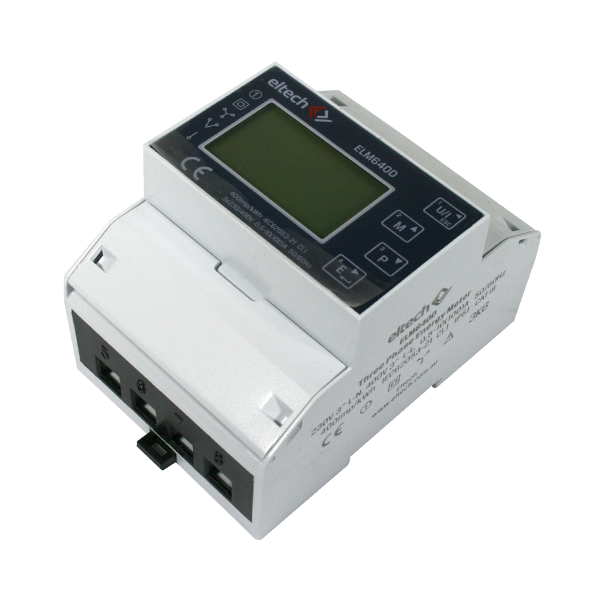

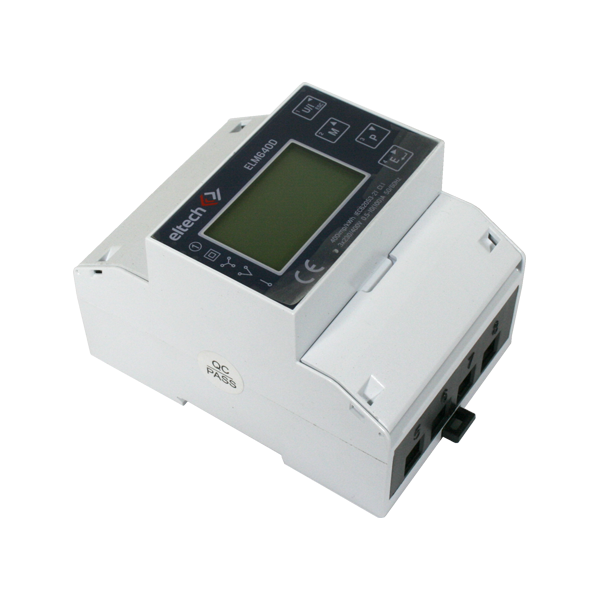

Product Name/Title: DIN Rail 3P Whole Current Meter 100Amps Class 1 RS485 Modbus Pulse
Brand: Eltech
SKU: ELM640D
Alternatively Known As: 3 Phase Current Meter, DIN Rail Energy Meter, RS485 Modbus Meter, Whole Current Power Meter
Technical Specifications
- Measurement Type: 3-phase whole current
- Current Capacity: 100 Amps
- Accuracy Class: Class 1
- Communication: RS485 Modbus
- Output: Pulse output for energy monitoring
- Mounting: DIN Rail
- Dimensions (H x L x W): 90mm x 65mm x 72mm
- Weight: 0.5 kg
Key Features
- 3-phase whole current measurement
- 100 Amps current capacity
- Class 1 accuracy
- RS485 Modbus communication protocol
- Pulse output for energy monitoring
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Power Quality Monitoring
- Industrial Electrical Systems
- Energy Management Systems
- Commercial and Residential Electrical Installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient energy monitoring to reduce power wastage
- Supports sustainable energy management practices
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eltech DIN Rail 3P Whole Current Meter 100Amps Class 1 RS485 Modbus Pulse is available now for immediate purchase. Ideal for power quality monitoring in industrial, commercial, and residential electrical systems.
