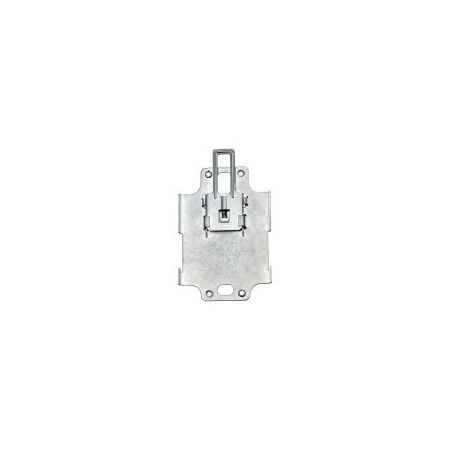

DIN Rail Adaptor 3P to Suit NM8N 250A MCCB Chint
Chint DIN rail adaptor for 3P NM8N 250A frame MCCB. Ideal for rail mounting the MCCB in a modular enclosure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CHINT NM8N-250 3-Pole DIN Rail Mounting Adaptor, MCCB DIN Rail Adapter, NM8N 250A Rail Mount Adaptor
Technical Specifications
- Accessory Code: DRA22-M8 3P
- Compatibility: CHINT NM8N-250 frame moulded case circuit breakers
- Number of Poles: 3P
- Compatible Breaker Rating: Up to 250 A frame size
- Mounting Type: Standard DIN rail mounting inside a suitable enclosure
- Construction: Industrial-grade mounting accessory
- Installation Orientation: Front connection configuration
- Adaptor Thickness: Approximately 9 mm
- Dimensions (H x L x W): 45mm x 105mm x 9mm
- Weight: 0.25 kg
Key Features
- Designed specifically for 3-pole CHINT NM8N-250 frame MCCBs
- Enables DIN rail mounting of a large-frame MCCB
- Suitable for modular enclosures, distribution boards and control panels
- Provides a secure mechanical mounting interface
- Supports faster switchboard assembly and equipment replacement
- Compact accessory format for space-efficient enclosure layouts
Professional Installation Requirements
- Installation must be carried out by a licensed electrician or suitably qualified switchboard builder. The adaptor and MCCB must be installed in accordance with CHINT instructions, the enclosure manufacturer's requirements and applicable Australian electrical installation rules.
Applications
- DIN rail mounting of CHINT NM8N-250 3-pole MCCBs
- Modular electrical enclosures
- Low-voltage distribution boards
- Industrial control panels
- Commercial switchboards and equipment assemblies
Standards & Compliance
- AS/NZS 3000:2018 for electrical installation and enclosure mounting practices
- AS/NZS 61439.1 and AS/NZS 61439.2 for applicable low-voltage switchboard or controlgear assemblies
Environmental Benefits
- Reusable mounting accessory that can support equipment replacement without replacing the complete enclosure assembly
- Durable construction can extend service life and reduce replacement waste
- Enables compact equipment layouts that may reduce enclosure material requirements
Warranty Information
CHINT's general policy for other low-voltage apparatus provides a 27-month warranty from the date of manufacture against defects in materials and workmanship when products are purchased through authorised sales channels; contractual or local warranty conditions may vary.
Available Now
Available through authorised CHINT distributors in Australia.
