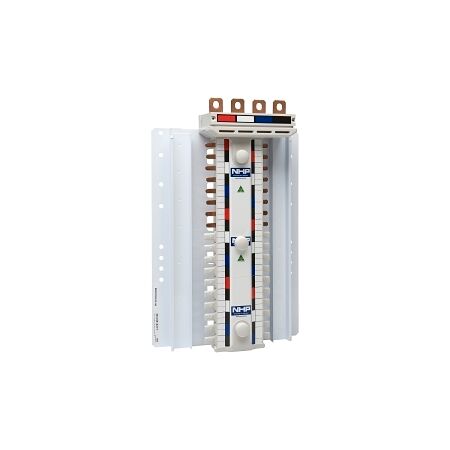

NHP POWERMAX DIN-T NC Busbar Chassis 250A 48 Way 4Pole Top Feed RNWNBN

DIN Rail Busbar 250A 48 Way | 4 Pole Top Feed | IP20 Protection by NHP

BRAND: NHP

SKU: NC248184TF

$1,690.00 List price: $2,244.10

+ −

30 Days Return Delivery Options

DIN rail busbar with 250A rated current and 48 poles—ideal for industrial power distribution. Built for durability with encapsulated housing and IP20 protection, suitable for indoor use.

Description
Attachments

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A 48 Way 4Pole Top Feed RNWNBN

Brand: NHP

SKU: NC248184TF

Alternatively Known As: DIN Rail Busbar, Power Distribution Busbar, NC Busbar Chassis

Technical Specifications

Rated Current: 250 A
Number of Poles: 48
Nominal Voltage: 415 V
Short Time Withstand Current (1 sec): 10 kA
Short Time Withstand Current (0.3 sec): 20 kA
Short Time Withstand Current (0.1 sec): 25 kA
Assembly Arrangement: 18mm pitch
Degree of Protection: IP20
Dimensions (H x L x W): 458mm x 500mm x 100mm
Weight: 5 kg

Key Features

250A rated current with 48 poles for extensive connectivity.
Encapsulated material housing for enhanced durability.
IP20 degree of protection suitable for indoor use.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in commercial and industrial settings
Electrical: Suitable for use in switchboards and distribution boards

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

Durable materials reduce the need for frequent replacements, minimizing waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX DIN-T NC Busbar Chassis 250A 48 Way 4Pole Top Feed is available now for immediate purchase. Ideal for industrial power distribution applications.

Non-Returnable & Non-Cancellable

NC248184TF-AU-Chassis-NC-DINT-250A-4-Pole-Top-Feed-Datasheet.pdf (NC248184TF-AU-Chassis-NC-DINT-250A-4-Pole-Top-Feed-Datasheet.pdf, 238 Kb) [Download]
