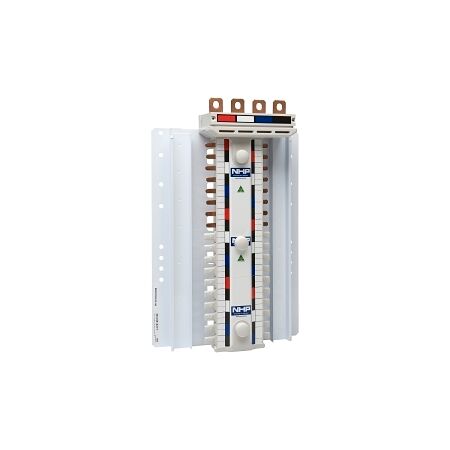

DIN Rail Busbar 400A 24 Way | 4 Pole Top Feed | IP20 Protection by NHP

BRAND: NHP
SKU: NC424184TF
$1,841.20 List price: $2,444.90
+
DIN rail busbar with 400A rated current and 24 poles—ideal for industrial power distribution. Built for durability with encapsulated housing and IP20 protection, perfect for switchboards and distribution boards.

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 400A 24 Way 4Pole Top Feed RNWNBN

Brand: NHP

SKU: NC424184TF

Alternatively Known As: DIN Rail Busbar, Power Distribution Busbar, Electrical Busbar

Technical Specifications
  • Rated Current: 400 A
  • Number of Poles: 24
  • Number of Phases Input: 3P+N
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (ICW) 0.1 sec: 30 kA
  • Short Time Withstand Current (ICW) 0.3 sec: 25 kA
  • Short Time Withstand Current (ICW) 1 sec: 13 kA
  • Assembly Arrangement: 18mm pitch
  • Material Housing: Encapsulated material
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 242mm x 400mm x 100mm
  • Weight: 5 kg
Key Features
  • Rated current of 400A with 24 poles for efficient power distribution.
  • Encapsulated material housing for enhanced durability and safety.
  • IP20 degree of protection suitable for indoor applications.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in commercial and industrial settings
  • Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX DIN-T NC Busbar Chassis 400A 24 Way 4Pole Top Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.

Non-Returnable & Non-Cancellable

NC424184TF-AU-Chassis-NC-DINT-400A-3-Pole-Top-Feed-Datasheet.pdf (NC424184TF-AU-Chassis-NC-DINT-400A-3-Pole-Top-Feed-Datasheet.pdf, 237 Kb) [Download]
