DIN Rail Main Switch 1 Pole 100A | IP40 Protection | Compact Design by NHP
DIN rail main switch with 1 pole and 100A rated current—ideal for residential, commercial, and light industrial applications. Built for reliable circuit protection, with IP40 dust and moisture resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

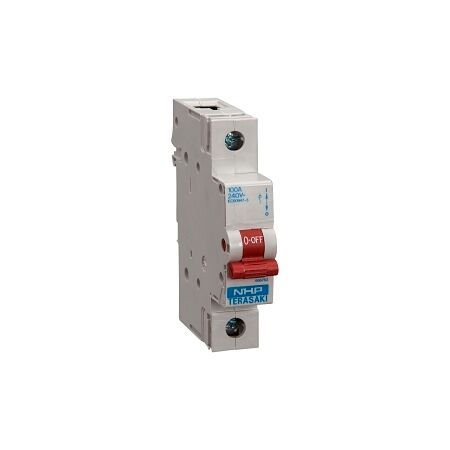

Product Name/Title: NHP DIN-T Main Switch 1Pole 100A
Brand: NHP
SKU: DINTMS1001
Alternatively Known As: NHP 100A Main Switch, DIN Rail Main Switch, 1 Pole Circuit Breaker
Technical Specifications
- Rated Current: 100 A
- Number of Poles: 1
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Service Voltage (Ub AC): 12 V
- Rated Impulse Withstand Voltage (Uimp): 8 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section (Solid Core): 1-50 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature Without Derating: 30 °C
- Ambient Temperature During Operating: -5-40 °C
- Dimensions (H x L x W): 86mm x 80mm x 18mm
- Weight: 0.12 kg
Key Features
- 1 Pole design for single-phase applications.
- Rated current of 100A for reliable performance.
- IP40 protection rating for dust and moisture resistance.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient design reduces energy loss and enhances safety.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Main Switch 1Pole 100A is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
