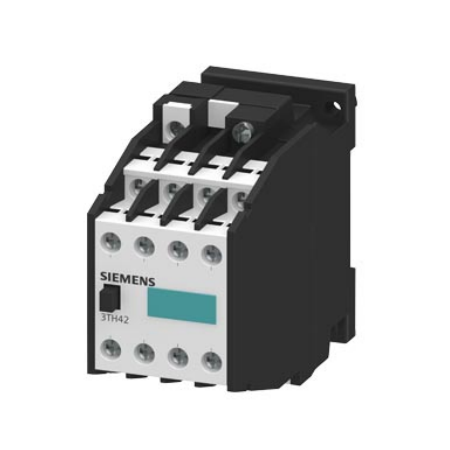

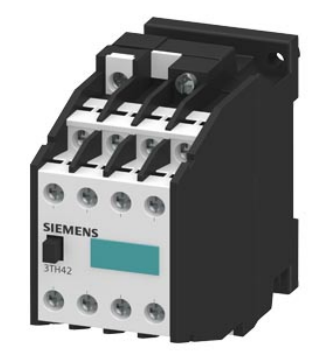

DIN Rail Mount 20AMP Relay | 8 N/O Contacts | 240VAC Coil | by NHP
The DIN Rail Mount 20AMP Relay features 8 normally open contacts and operates at 240VAC, making it ideal for industrial control panels and automation systems. Designed for high reliability with a B10 value of 1,000,000 operations, this auxiliary contactor ensures long service life and energy-efficient operation, perfect for electrical switching and control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DIN Rail Mount 20AMP Relay | 8 N/O Contacts | 240VAC Coil | by NHP
Brand: NHP
SKU: 3TH4280-0AP0
Alternatively Known As: DIN Rail Relay 20A, 8 N/O Contact Relay, 240VAC Coil Relay, Auxiliary Contactor 3TH4
Technical Specifications
- Product designation: Auxiliary contactor
- Product type designation: 3TH4
- Size of contactor: 0
- Control supply voltage: AC 230V (50Hz), 277V (60Hz)
- Number of normally open auxiliary contacts: 8
- Number of normally closed auxiliary contacts: 0
- Operational current at AC-15: 10A at 230V, 6A at 400V
- Mounting: Screw and snap-on 35 mm DIN rail (DIN EN 50022)
- Electrical connection: Screw-type terminals
- Ambient operating temperature: -25 to +55 °C
- Protection class on front: IP00
- B10 value (high demand rate): 1,000,000 operations
- Proof test interval/service life: 20 years (IEC 61508)
- Dimensions (H x L x W): 78mm x 102mm x 45mm
- Weight: 0.3 kg
Key Features
- Auxiliary contactor with 8 normally open (N/O) contacts
- Control supply voltage AC 230V at 50Hz and 277V at 60Hz
- Operational current at AC-15: 10A at 230V, 6A at 400V
- Screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022
- Screw-type terminals for auxiliary and control circuit connections
- High reliability with B10 value of 1,000,000 operations
- Service life proof test interval of 20 years according to IEC 61508
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper DIN rail mounting.
Applications
- Industrial control panels
- Automation systems
- Electrical switching and control
- Building management systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed for long service life reducing waste and replacement frequency
- Energy efficient coil operation minimizing power consumption
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The NHP DIN Rail Mount 20AMP Relay with 8 N/O Contacts and 240VAC Coil is available for immediate purchase, ideal for industrial and automation control applications.
