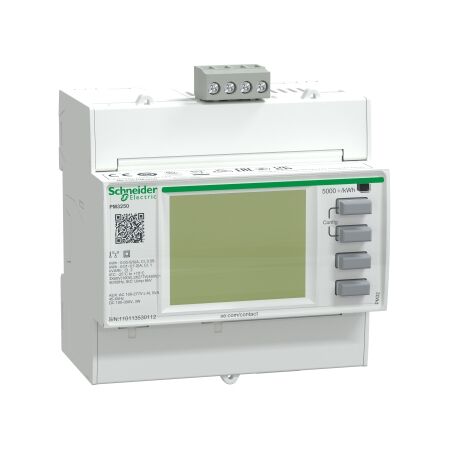

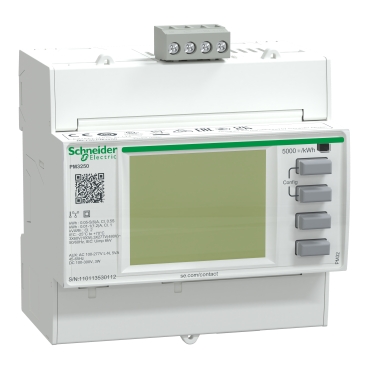

Din Rail Power Meter Modbus | 3-Phase Measurement | RS485 Communication | Backlit LCD | @Quantity of 1 | by Clipsal
The Din Rail Power Meter Modbus is designed for precise energy monitoring in commercial and industrial settings. With 3-phase measurement capabilities and RS485 Modbus communication, it provides real-time data visualization on a backlit LCD. Ideal for sub-metering in multi-tenant buildings and energy management, this meter ensures high accuracy and supports configurable alarms for enhanced monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Din Rail Power Meter Modbus | 3-Phase Measurement | RS485 Communication | Backlit LCD | @Quantity of 1 | by Clipsal
Brand: Clipsal
SKU: SCHMETSEPM3250
Alternatively Known As: PM3250 Power Meter, Schneider Din Rail Power Meter, Modbus Energy Meter, Clipsal Energy Meter, Sub Meter Modbus
Technical Specifications
- Voltage Measurement: 3-phase, 4-wire, 230/400V AC
- Current Measurement: Up to 5A via CTs
- Accuracy: Class 1.0 (IEC 62053-21)
- Communication: RS485 Modbus RTU
- Display: Backlit LCD
- Pulse Output: 1 configurable output
- Power Supply: 100-415V AC / 125-250V DC
- Frequency: 50/60Hz
- Mounting: DIN rail (35mm)
- Operating Temperature: -25°C to +70°C
- Dimensions (H x L x W): 90mm x 65mm x 90mm
- Weight: 0.4 kg
Key Features
- Compact DIN rail mounting for easy installation
- Supports Modbus RTU communication protocol
- Measures active, reactive, and apparent energy
- Multi-tariff and multi-measurement capabilities
- LCD display for real-time data visualization
- High accuracy class 1.0 for energy measurement
- Configurable alarms and pulse outputs
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Commercial and industrial energy management
- Sub-metering in multi-tenant buildings
- Panelboard and switchboard energy monitoring
- Data centers and server rooms
- Renewable energy systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables detailed energy monitoring to identify and reduce energy waste
- Supports energy efficiency initiatives in commercial and industrial environments
- Facilitates compliance with energy management standards
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Din Rail Power Meter Modbus PM3250 is available for immediate purchase. Ideal for commercial, industrial, and multi-tenant energy monitoring applications.
