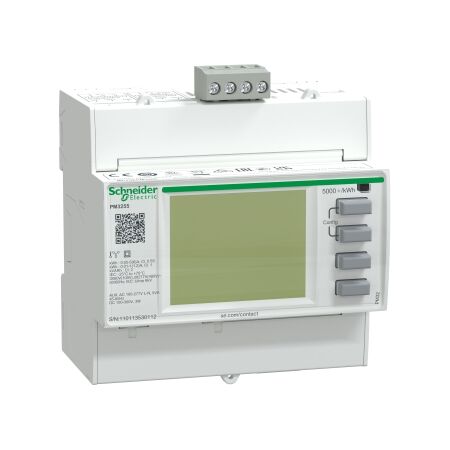

Din Rail Power Meter MODBUS | Compact Design | Multi-Function Monitoring | High Accuracy Class 1 | @Pack of 1 | by Clipsal
The Din Rail Power Meter MODBUS is designed for efficient energy management, featuring a compact design and multi-function monitoring capabilities. Ideal for commercial and industrial applications, it supports MODBUS RS485 communication and provides high accuracy measurements of voltage, current, power, and energy. With an LCD display for real-time data visualization, this power meter is perfect for sub-metering and optimizing energy use in various settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Din Rail Power Meter MODBUS | Compact Design | Multi-Function Monitoring | High Accuracy Class 1 | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHMETSEPM3255
Alternatively Known As: PM3255 Power Meter, MODBUS Energy Meter, Din Rail Energy Meter, Schneider Electric Power Meter, Sub Metering Device
Technical Specifications
- Model: PM3255
- Mounting: DIN rail
- Communication: MODBUS RS485
- Inputs/Outputs: 2 digital inputs, 2 digital outputs
- Measurement: Voltage, current, power, energy, frequency, power factor
- Accuracy: Class 1 (IEC 62053-21)
- Display: LCD
- Power Supply: 100-415V AC / 100-300V DC
- Frequency: 50/60Hz
- Operating Temperature: -25°C to +70°C
- Dimensions (H x L x W): 72mm x 65mm x 90mm
- Weight: 0.35 kg
Key Features
- Compact DIN rail mounting for easy installation
- Multi-function power and energy monitoring
- Supports MODBUS RS485 communication
- 2 digital inputs and 2 digital outputs for flexible integration
- High accuracy class 1 (IEC 62053-21)
- LCD display for real-time data visualization
- Measures voltage, current, power, energy, frequency, and power factor
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Commercial and industrial energy management
- Sub-metering in multi-tenant buildings
- Electrical distribution panels
- Data centers and server rooms
- Renewable energy systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring to identify and reduce energy waste
- Supports energy efficiency initiatives in commercial and industrial environments
- Facilitates integration with building management systems for optimized energy use
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Din Rail Power Meter MODBUS PM3255 is available for immediate purchase. Ideal for commercial and industrial energy monitoring and sub-metering applications.
