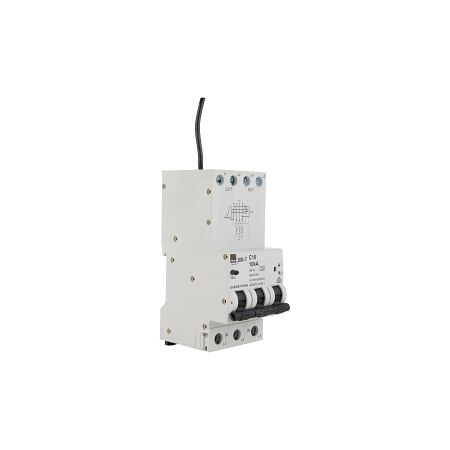

DIN-Safe RCBO 3P+N 32A | 10kA D Curve | 100mA Type A | 54mm by NHP
DIN-Safe RCBO with 32A rated current and 100mA leakage—ideal for residential and commercial safety. Built for high inrush current applications, with easy DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DIN-Safe RCBO 3P+N 10kA 32A D Curve 100mA Type A 54mm
Brand: NHP
SKU: DSRCBT32100AD
Alternatively Known As: Residual Current Circuit Breaker, RCD, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 32 A
- Rated Voltage: 415 V
- Rated Leakage Current: 100 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 10 kA
- Voltage Type: AC
- Trip Curve: D
- Rated Impulse Withstand Voltage: 4 kV
- Tripping Time: 300 ms
- Min Service Voltage: 204 V
- Max Operating Voltage: 457 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles: 4
- Degree of Protection: IP20
- Operating Temperature: -5 to 55 °C
- Dimensions (H x L x W): 117.5mm x 71.6mm x 53.4mm
- Weight: 0.55 kg
Key Features
- Residual Current Circuit Breaker with a rated current of 32A and a leakage current of 100mA.
- Trip curve D for high inrush current applications.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The DIN-Safe RCBO 3P+N 10kA 32A D Curve 100mA Type A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
