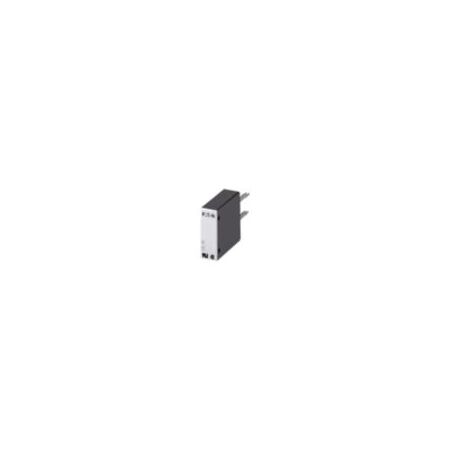

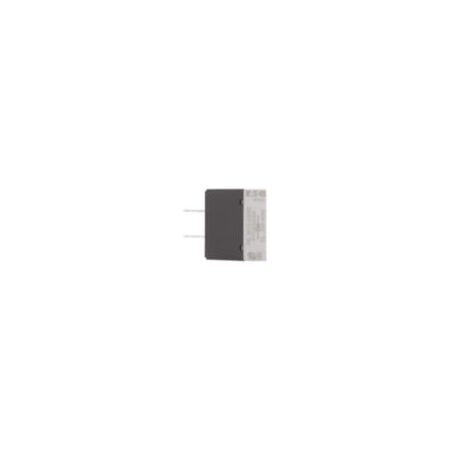

Diode Suppressor DILM12-XSPD | 12V to 250V Rated Voltage | -25°C to 60°C Operating Temp | UL Recognized by Eaton
Diode suppressor DILM12-XSPD with a rated voltage of 12V to 250V and an operating temperature range of -25°C to 60°C—ideal for industrial electrical control systems. Built for reliable performance, it protects coil circuits and enhances system efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Diode Suppressor DILM12-XSPD | 12V to 250V Rated Voltage | -25°C to 60°C Operating Temp | UL Recognized by Eaton
Brand: Eaton
SKU: Y7-101672
Alternatively Known As: DILM diode suppressor, Eaton diode suppressor, DILM12 diode suppressor, contactor diode suppressor
Technical Specifications
- Voltage type: DC
- Rated control supply voltage (Us) DC: 12 V to 250 V
- Ambient operating temperature: -25 °C to 60 °C
- Heat dissipation: 0 W
- Certifications: UL Recognized, CSA, CE, IEC/EN 60947-4-1
- Functions: Diode suppression
- Product weight: 0.004 kg
- Dimensions (H x L x W): 25mm x 48mm x 9mm
- Weight: 0.004 kg
Key Features
- Diode function for suppression
- Compatible with DILA, M7-15 series
- Meets corrosion resistance and thermal stability requirements
- Complies with IEC/EN 60947-4-1 standards
- Wide ambient operating temperature range from -25 °C to 60 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or panel builder to ensure compliance with electrical standards and proper integration into switchgear.
Applications
- Used with DILM12-XSPD contactors for diode suppression in electrical control systems
- Industrial electrical panels requiring diode protection for coil circuits
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances electrical system reliability reducing waste from component failure
- Supports energy-efficient operation by protecting control circuits
Warranty Information
Warranty details available upon request from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller DILM12-XSPD diode suppressor is available for immediate purchase, ideal for industrial electrical control panel applications requiring diode suppression.
