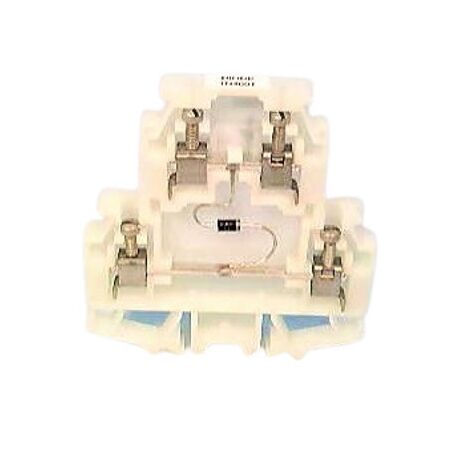

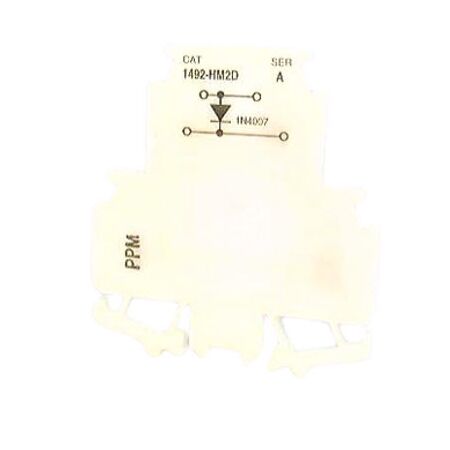

Diode Terminal Block 1492HM2D | Two-Circuit Design | 24A Current Rating | Finger-Safe | by Allen-Bradley
The Diode Terminal Block 1492HM2D features a two-circuit design with a 1N4007 diode, making it ideal for industrial control panels and electrical wiring. Rated for 24A on busses and 1A on the diode, this finger-safe block supports wire sizes from #30 to #12 AWG, ensuring reliable circuit protection and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Two-circuit block with 1N4007 diode between circuits
- Wire size range: #30 to #12 AWG
- Current rating: 24A (busses), 1A (diode)
- Voltage rating: 600 VAC/DC
- Finger-safe high-density design
- Color: White
- Dimensions (H x L x W): 40mm x 20mm x 50mm
- Weight: 0.1 kg
Key Features
- Two-circuit block with 1N4007 diode between upper and lower circuits
- Finger-safe high-density design
- Supports wire sizes #30 to #12 AWG
- Rated for 24A on busses and 1A on diode
- Rated for 600 VAC/DC
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Electrical wiring and circuit protection
- Multi-rail mounting electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances circuit reliability reducing electronic waste
- Durable design extends product lifecycle
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 1492HM2D Diode Terminal Block is available for immediate purchase, ideal for industrial and commercial electrical wiring applications.
