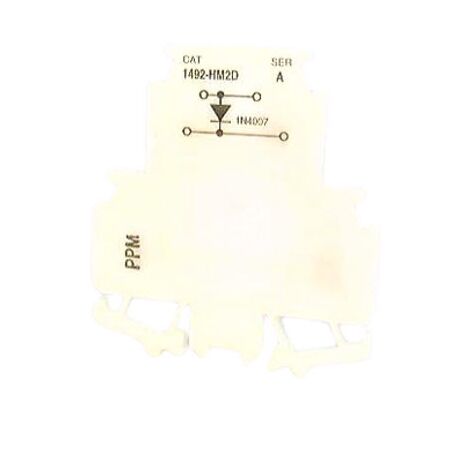

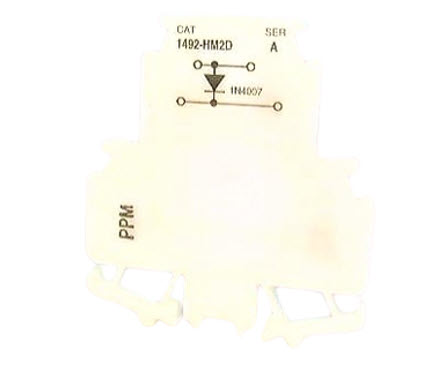

Product Name/Title: Allen-Bradley 1492HM2D Diode Terminal Block
Brand: Allen-Bradley
SKU: 1492HM2D
Alternatively Known As: Diode Terminal Block, Multi-Rail Diode Block, 1492HM2D Terminal Block
Technical Specifications

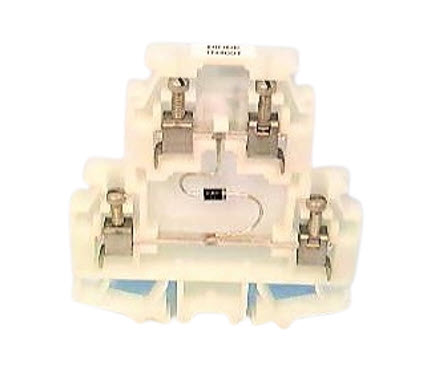

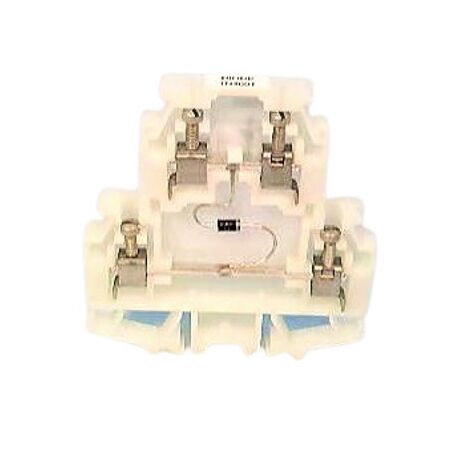

- Two-circuit block with 1N4007 diode between circuits
- Wire size range: #30 to #12 AWG
- Current rating: 24A (busses), 1A (diode)
- Voltage rating: 600 VAC/DC
- Finger-safe high-density design
- Color: White
- Dimensions (H x L x W): 40mm x 20mm x 50mm
- Weight: 0.1 kg
Key Features
- Two-circuit block with 1N4007 diode between upper and lower circuits
- Finger-safe high-density design
- Supports wire sizes #30 to #12 AWG
- Rated for 24A on busses and 1A on diode
- Rated for 600 VAC/DC
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Electrical wiring and circuit protection
- Multi-rail mounting electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances circuit reliability reducing electronic waste
- Durable design extends product lifecycle
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 1492HM2D Diode Terminal Block is available for immediate purchase, ideal for industrial and commercial electrical wiring applications.
