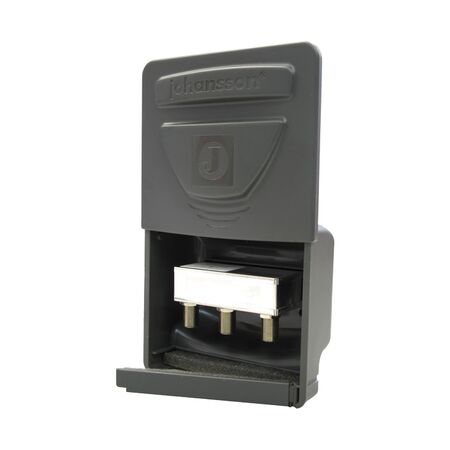

Diplexer Channels 28-47 & 53-69 | F Connector | Weatherproof Housing

SKU: 09MM-HL4F

$113.10 List price: $147.60

+ −

30 Days Return Delivery Options

Diplexer with channels 28-47 and 53-69, featuring industry-standard 'F' connectors and UV-stabilized weatherproof housing—ideal for robust signal distribution. Built for durability, with non-corrosive circuit board and easy installation.

Description

Product Name/Title: Diplexer Channels 28-47 & 53-69 | F Connector | Weatherproof Housing

SKU: 09MM-HL4F

Alternatively Known As: TV Diplexer, RF Diplexer, Channel Diplexer, F Connector Diplexer

Technical Specifications

Channels: 28-47 and 53-69
Connection Type: 'F' Type
Channels Port 1: Channels 28-47
Channels Port 2: Channels 53-69 with AC Pass
Loss UHF: 0.5-1.5dB
Isolation: 20-30dB
Dimensions (H x L x W): 40mm x 100mm x 80mm
Weight: 0.2 kg

Key Features

Industry standard 'F' connector
Strap for easy installation and long life
Non-corrosive circuit board with high quality components
U/V stabilised weatherproof black housing

Professional Installation Requirements

Professional installation by a qualified technician is recommended to ensure optimal signal performance and weatherproofing.

Applications

Television signal distribution
Satellite and antenna signal combining
Outdoor and indoor RF signal management

Standards & Compliance

Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)

Environmental Benefits

Weatherproof housing extends product life reducing waste
Durable components reduce need for frequent replacements

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Diplexer Channels 28-47 & 53-69 with F Connector and Weatherproof Housing is available now for immediate purchase. Ideal for residential and commercial RF signal distribution applications.
