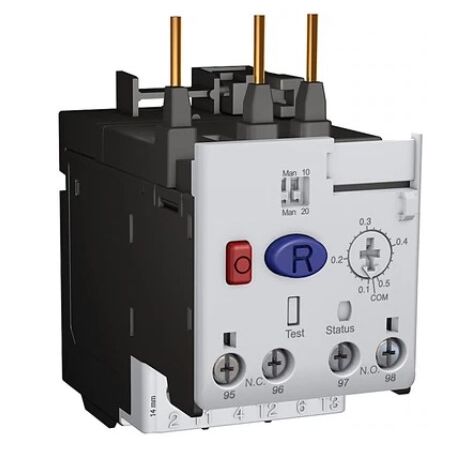

Direct Mount Electronic Overload Relay | Selectable Trip Class | 3.2-16.0 A Current Range | by Allen-Bradley

BRAND: Allen-Bradley
SKU: 1931EFDB
$259.20 List price: $323.00
+ −
30 Days Return Delivery Options
The Direct Mount Electronic Overload Relay from Allen-Bradley is designed for reliable motor protection, featuring a selectable trip class of 10, 15, 20, or 30 and a current range of 3.2-16.0 A. Ideal for industrial applications and automation control panels, this relay includes both normally open and normally closed contacts, ensuring optimal performance and safety in machinery requiring overload protection.
Technical Specifications
  • Trip Class: Selectable 10, 20, 15, 30
  • Reset Mode: Selectable manual or auto-manual
  • Current Range: 3.2-16.0 A
  • Contacts: 1 normally open, 1 normally closed
  • Mounting: Direct mount to 100-C09 to 100-C23 contactors
  • Dimensions (H x L x W): 80mm x 70mm x 50mm
  • Weight: 0.5 kg
Key Features
  • Direct mount electronic overload relay
  • Selectable trip class: 10, 20, 15, 30
  • Selectable manual or auto-manual reset
  • Current range: 3.2-16.0 A
  • Includes 1 normally open contact and 1 normally closed contact
  • Mounts to 100-C09 to 100-C23 contactors
Professional Installation Requirements
  • Installation by a qualified electrician or technician is required to ensure proper mounting and electrical connections.
Applications
  • Industrial motor protection
  • Automation control panels
  • Manufacturing equipment
  • Machinery requiring motor overload protection
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Electronic design reduces energy waste by providing precise motor protection
  • Helps extend motor life, reducing equipment replacement and waste
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley 1931EFDB Direct Mount Electronic Overload Relay is available now for immediate purchase. Ideal for industrial motor protection and automation control applications.
