Direct Rotary Handle to Suit NM8N MCCB Chint

BRAND: CABAC
SKU: 269655
$247.30 List price: $329.70
+ −
30 Days Return Electricians Unlock Trade Access

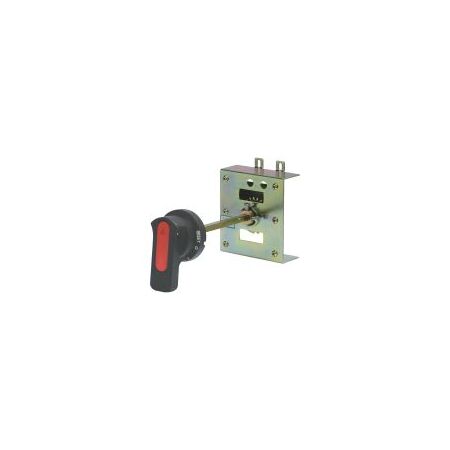

Chint direct mount standard rotary handle to suit NM8N MCCB. Ideal for panel front rotary operation of the MCCB.

Alternatively Known As: CHINT DRH Direct Rotary Handle, NM8N MCCB Rotary Operator, Direct-Mount MCCB Handle

Technical Specifications
  • Accessory Type: Direct rotary handle
  • Compatibility: CHINT NM8N moulded-case circuit breakers
  • Frame Compatibility: DRH21-M8 for 125 frame, DRH22-M8 for 250 frame and DRH23-M8 for 400/630 frame
  • Protection Degree: IP40
  • Operating Positions: Open, closed and free trip
  • Locking: OFF-position locking for 1–3 padlocks
  • Padlock Diameter: 5–8 mm
  • Mounting: Direct mount to the MCCB front face
  • Insulation: Reliable insulated operating mechanism
  • Dimensions (H x L x W): 133mm x 113.5mm x 76mm
  • Weight: 0.365 kg
Key Features
  • Enables front-panel rotary operation of a compatible NM8N MCCB
  • Provides open, closed and free-trip position indication
  • Can be locked in the OFF position with up to three padlocks
  • Designed for panel and switchboard applications
  • Must be matched to the NM8N MCCB frame size and release configuration
Professional Installation Requirements
  • Installation should be performed by a licensed electrician or suitably qualified switchboard technician with the MCCB isolated. Confirm the handle model matches the NM8N frame size and follow CHINT installation instructions and applicable wiring rules.
Applications
  • MCCB operation from the front of electrical panels
  • Industrial switchboards and distribution boards
  • Commercial building power distribution panels
  • Motor control and low-voltage distribution assemblies
  • Isolation and maintenance access for compatible NM8N MCCBs
Standards & Compliance
  • AS/NZS IEC 60947.2: Applicable to the compatible NM8N moulded-case circuit breaker; verify compliance of the complete installed assembly.
  • AS/NZS 3000: Installation wiring and isolation requirements where incorporated into an Australian electrical installation.
Environmental Benefits
  • Allows the MCCB to remain serviceable and operated without replacing the complete protective device
  • Durable mechanical construction can reduce accessory replacement and associated waste
  • Supports safe isolation and maintenance of energy distribution equipment
Warranty Information

CHINT warranty policy for other low-voltage apparatus provides 27 months from the date of manufacture, subject to authorised sales channels, contract conditions and applicable terms.
