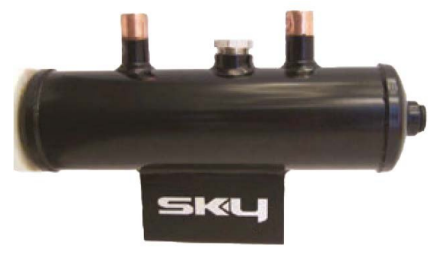

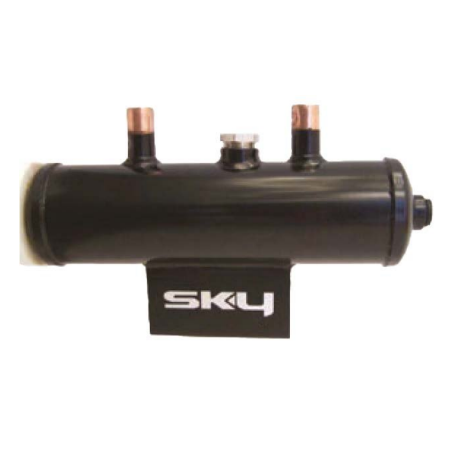

Discharge Muffler 311-18 | 1 1/8” ID Connection | 3600 kPa SWP | Anti-Corrosion Finish | by Aspen Pumps
The Discharge Muffler 311-18 is designed for refrigeration and HVAC systems, featuring a 1 1/8” ID connection and a safe working pressure of 3600 kPa. With its anti-corrosion powder coat finish and solid copper connections, this muffler minimizes pressure drop and reduces noise, ensuring efficient operation and environmental safety in industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Discharge Muffler 311-18 | 1 1/8” ID Connection | 3600 kPa SWP | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 311-18
Alternatively Known As: Discharge Muffler 311-18, Harmonic Attenuator, Pressure Vessel Muffler
Technical Specifications
- Connection size: 1 1/8” ID
- Lay-in diameter: 310 mm
- Safe Working Pressure (SWP): 3600 kPa
- Manufactured to ISO/AS 5149.2
- Anti-corrosion powder coat finish
- Solid copper connections
- Includes SKY safety socket for PRV to prevent refrigerant leakage
- Oil drain channels to avoid oil logging
- Dimensions (H x L x W): 150mm x 310mm x 310mm
- Weight: 5 kg
Key Features
- Connection: 1 1/8” ID with 310mm lay-in diameter
- Safe working pressure (SWP) of 3600 kPa
- Manufactured in accordance with ISO/AS 5149.2 standards
- Minimal pressure drop to improve plant efficiency
- SKY safety socket fitted to PRV sockets to prevent refrigerant leakage
- Anti-corrosion powder coat finish with solid copper connections
- Utilizes harmonic wave cut principles to reduce noise and smooth discharge pulses
- Oil drain channels to prevent oil logging
Professional Installation Requirements
- Installation should be performed by qualified HVAC or refrigeration professionals to ensure compliance with safety and operational standards.
Applications
- Used in refrigeration and HVAC systems to reduce noise and smooth discharge pulses
- Suitable for industrial pressure vessels requiring harmonic attenuation
- Applicable in systems requiring anti-corrosion and leak prevention features
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems and components
Environmental Benefits
- Reduces noise pollution in industrial environments
- Prevents refrigerant leakage ensuring environmental safety
- Improves plant efficiency reducing energy waste
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps for specific warranty terms.
Available Now
The Aspen Pumps Discharge Muffler 311-18 is available for immediate purchase, ideal for use in refrigeration and HVAC pressure vessel applications.
