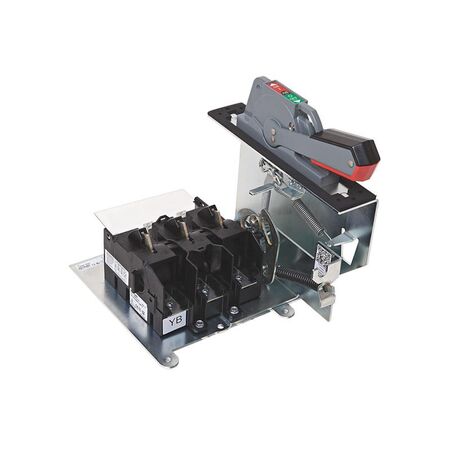

30 Amp Disconnect Switch | Flange Mount Design | Type 1, 3R, 12 Compatible | by Allen-Bradley
The 30 Amp Disconnect Switch is designed for reliable electrical control in industrial applications. With a flange mount design, it ensures secure installation and is compatible with Type 1, 3R, or 12 enclosures. Ideal for motor control centers and electrical disconnects, this switch supports both fusible and non-fusible configurations, enhancing safety and efficiency in your electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Current Rating: 30 Amp
- Mounting Type: Flange mount
- Depth: Fixed depth
- Enclosure Compatibility: Type 1, 3R, or 12
- Fuse Compatibility: Fusible or non-fusible (fuse clips and adapter plates sold separately)
- Dimensions (H x L x W): 200mm x 100mm x 150mm
- Weight: 2.5 kg
Key Features
- 30 Amp fixed depth disconnect switch
- Flange mount design for secure installation
- Suitable for Type 1, 3R, or 12 enclosures
- Compatible with fusible or non-fusible configurations
- Fuse clips and adapter plates sold separately
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper mounting.
Applications
- Industrial electrical control panels
- Motor control centers
- Electrical disconnect for machinery
- Enclosures requiring Type 1, 3R, or 12 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables safe disconnection of electrical circuits, reducing risk of electrical hazards and potential environmental damage.
- Supports maintenance and upgrades that can improve energy efficiency.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 1494FN30 Disconnect Switch is available for immediate purchase, ideal for industrial and commercial electrical applications.
