Trade Discount 25%

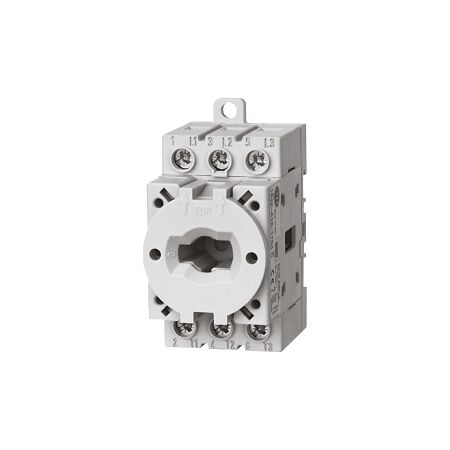

Disconnect Switch Body 3 Pole 63A | 690V Rated | IP20 Protection by NHP
Disconnect switch body with 3 pole configuration and 63A rated current—ideal for industrial and commercial electrical installations. Built for safety and durability, with 690V operation and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 194E Disconnect Switch Body, Base/DIN Rail mount 3 Pole 63A
Brand: NHP
SKU: 194EA631753
Alternatively Known As: 194E Disconnect Switch, 3 Pole Switch Disconnector, Allen-Bradley Switch
Technical Specifications
- Max Rated Operation Voltage: 690 V
- Rated Permanent Current: 63 A
- Rated Control Supply Voltage: 400-690 V
- Rated Operation Power at AC 3-400 V: 18.5 kW
- Rated Insulation Voltage: 600 V
- Rated Impulse Withstand Voltage: 8 kV
- Degree of Protection: IP20
- Rated Short Time Withstand Current: 1300 kA
- Rated Surrounding Temperature: 60 °C
- Dimensions (H x L x W): 180mm x 105mm x 125mm
- Weight: 1.5 kg
Key Features
- 3 Pole configuration with a rated current of 63A.
- Rated operation voltage up to 690V.
- IP20 protection degree for front side.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for use in manufacturing and processing facilities
- Commercial: Ideal for commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 194E Disconnect Switch Body is available now for immediate purchase, ideal for industrial and commercial electrical applications.
