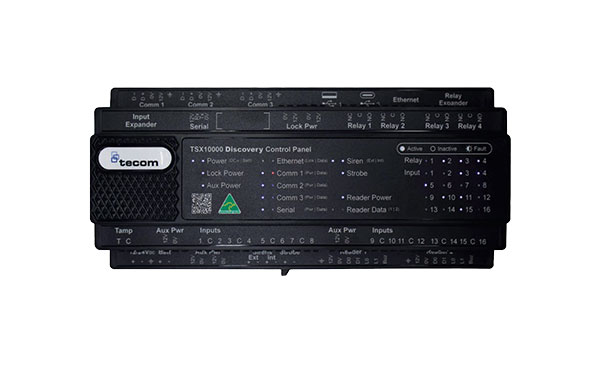

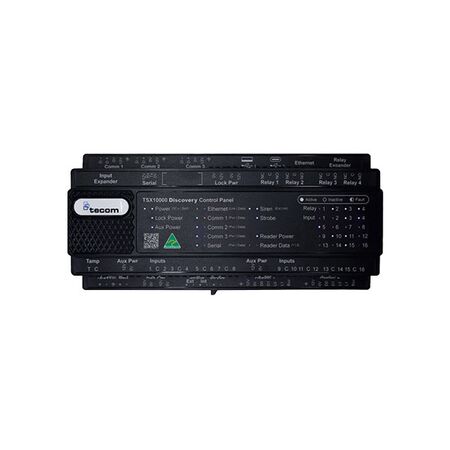

Discovery Module DIN Rail Mount ChallengerPlus Compatible Tecom

BRAND: Ness
SKU: 120-052
$2,593.60 List price: $3,458.10
+ −
30 Days Return Electricians Unlock Trade Access
Tecom Discovery module features DIN rail mounting and ChallengerPlus compatibility. Ideal for expanding Discovery alarm and access control systems.

Alternatively Known As: Tecom Discovery Control Panel, ChallengerPlus-Compatible Security Panel, Tecom Intrusion and Access Control Panel

Technical Specifications
  • Model: TSX10000
  • Mounting: DIN rail
  • Compatibility: ChallengerPlus peripherals and system architecture
  • Housing: Polycarbonate ABS plastic
  • Power Input: 12–24 V DC
  • Minimum Recommended Input Power: 90 W
  • Onboard Inputs: 16, expandable to 1,008
  • Onboard Relays: 4 general-purpose relays, expandable to 512
  • Siren Outputs: 2, configurable for 8 Ohm or 12 V DC sirens
  • Wiegand Reader Ports: 2
  • RS-485 Communications: 3 onboard buses
  • Access Control Capacity: Up to 128 doors
  • User Capacity: 65,535 users
  • Ethernet: 10/100 RJ45 network port
  • Operating Temperature: 0–50 °C
  • Relative Humidity: 0–93% non-condensing
  • Form Factor: Clipsal-compatible 12M / 12-pole sizing
  • Dimensions (H x L x W): 100mm x 215mm x 63mm
  • Weight: 0.7 kg
Key Features
  • DIN rail-mounted Discovery platform for intrusion and access control applications
  • Compatible with ChallengerPlus peripherals and existing Tecom interfaces
  • Integrated web browser for user and installer programming
  • Supports up to 32 standard doors onboard and up to 128 doors overall
  • Four onboard general-purpose relays for applications such as door control
  • Sixteen onboard inputs with expansion capability
  • Two direct Wiegand reader ports
  • Status LED panel for device, power, activity and fault indication
  • Firmware upgradeable remotely or locally via browser or CTPlus
  • Optional 4G and Wi-Fi communication adapters available
  • Australian-designed and manufactured platform
  • Upgrade kit available for existing ChallengerPlus enclosures
Professional Installation Requirements
  • Installation, commissioning and programming should be completed by a suitably qualified security systems technician or licensed electrical contractor. Power, alarm, access-control and communications wiring must be installed in accordance with applicable Australian requirements and the manufacturer's instructions.
Applications
  • Commercial intrusion alarm systems
  • Electronic access control installations
  • Door and lift control systems
  • Commercial buildings and offices
  • Educational campuses and institutional facilities
  • Transport and infrastructure security systems
  • Retrofit upgrades for existing ChallengerPlus installations
Standards & Compliance
  • Relevant system standard: AS/NZS IEC 60839.11.1 for electronic access control system and component requirements
  • Relevant application guidance: AS/NZS IEC 60839.11.2 for electronic access control systems and accessory equipment
  • Alarm installation context: AS/NZS 2201.1 for intruder alarm systems installed at clients' premises
Environmental Benefits
  • DIN rail form factor and compact Clipsal-compatible design can reduce enclosure space and associated installation materials
  • Remote firmware updates can reduce service visits and travel-related emissions
  • Expandable architecture supports system upgrades without replacing the complete control panel
  • Durable polycarbonate ABS housing and five-year Tecom hardware warranty support extended service life
  • Lower-voltage 12–24 V DC operation is suitable for integration with efficient security power systems
Warranty Information

Tecom hardware is covered by a 5-year warranty, subject to the manufacturer's warranty terms and conditions. Warranty remedies are generally replacement following testing and verification.

Available Now

Available through Tecom, Aritech/Kidde Global Solutions and authorised Australian security-system distributors.
