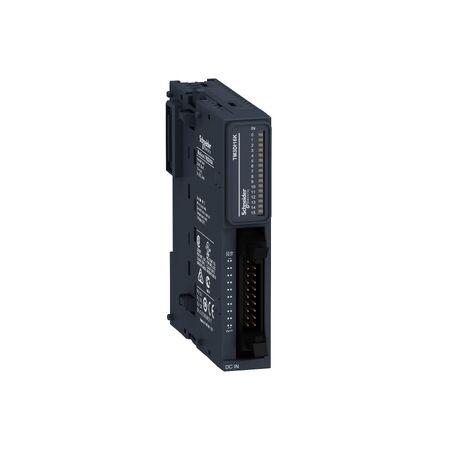

Modicon TM3, Discrete input module, 16 inputs (HE10) 24 VDC

Discrete Input Module 16 Inputs | 24 VDC | HE10 Connector by Clipsal

BRAND: Clipsal

SKU: TM3DI16K

$371.00 List price: $556.50

+ −

30 Days Return Delivery Options

Discrete input module with 16 inputs and 24 VDC voltage—ideal for industrial automation systems. Built for compatibility with Modicon controllers, featuring LED status indicators for each channel.

Description
Attachments

Product Name/Title: Modicon TM3, Discrete input module, 16 inputs (HE10) 24 VDC

Brand: Clipsal

SKU: TM3DI16K

Alternatively Known As: Modicon TM3 Input Module, Discrete Input Module, 24V DC Input Module

Technical Specifications

Discrete input voltage: 24 VDC
Input current: 5 mA per input
Response time: 4 ms (turn-on and turn-off)
Electrical connection: HE-10 connector
IP degree of protection: IP20 with protective cover
Operating temperature: -10...35 °C vertical, -10...55 °C horizontal
Storage temperature: -25...70 °C
Vibration resistance: 3.5 mm at 5-8.4 Hz on DIN rail
Shock resistance: 15 gn for 11 ms
Dimensions (H x L x W): 90mm x 81.3mm x 21.4mm
Weight: 0.65 kg

Key Features

16 discrete inputs conforming to IEC 61131-2 type 3.
Local signaling with 1 LED per channel for input status.
Compatible with Modicon M241, M251, M221, and M262.

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance.

Applications

Industrial automation systems
Control systems for machinery
Building management systems

Standards & Compliance

Complies with IEC 61131-2 for safety and performance standards.

Environmental Benefits

Packaging made with recycled cardboard.
PVC free.

Warranty Information

Standard warranty applies.

Available Now

The Clipsal Modicon TM3 Discrete Input Module is available now for immediate purchase. Ideal for industrial automation applications.

TM3DI16K (TM3DI16K, 376 Kb) [Download]
