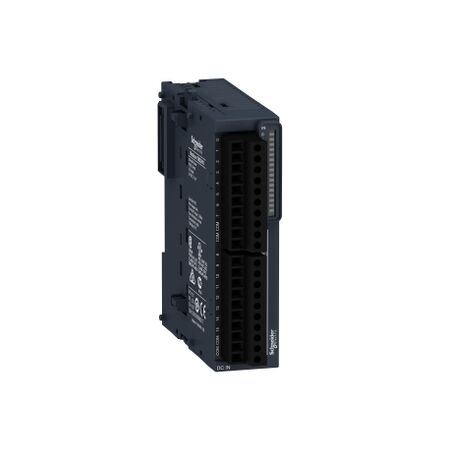

Modicon TM3, Discrete input module, 16 inputs (screw) 24 VDC

Discrete Input Module 16 Inputs | 24 VDC | IP20 Rated | LED Status by Clipsal

BRAND: Clipsal

SKU: TM3DI16

$464.90 List price: $697.40

+ −

30 Days Return Delivery Options

Discrete input module with 16 inputs and 24 VDC—ideal for industrial automation systems. Built for versatile control, with local LED indication and IP20 rating.

Description
Attachments

Product Name/Title: Modicon TM3, Discrete input module, 16 inputs (screw) 24 VDC

Brand: Clipsal

SKU: TM3DI16

Alternatively Known As: Modicon TM3 Input Module, Discrete Input Module, 24V DC Input Module

Technical Specifications

Input Voltage: 24 VDC
Input Current: 7 mA per input
Response Time: 4 ms
IP Rating: IP20
Operating Temperature: -10 to 35 °C (vertical), -10 to 55 °C (horizontal)
Storage Temperature: -25 to 70 °C
Relative Humidity: 10 to 95% without condensation
Electrical Connection: 10 x 1.5 mm² removable screw terminal block
Dimensions (H x L x W): 90mm x 84.6mm x 27.4mm
Weight: 0.1 kg

Key Features

16 discrete inputs for versatile control
Compatible with Modicon M241, M251, M221, and M262
Local LED indication for input status

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance.

Applications

Industrial automation systems
Control systems for machinery
Building management systems

Standards & Compliance

Complies with IEC 61131-2 for programmable controllers

Environmental Benefits

Packaging made with recycled cardboard
PVC free

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Clipsal Modicon TM3 Discrete Input Module is available now for immediate purchase. Ideal for industrial automation applications.

TM3DI16 (TM3DI16, 382 Kb) [Download]
