Discrete Input Module 32 Inputs | 24 VDC | HE10 Connector by Clipsal
Discrete input module with 32 inputs and 24 VDC—ideal for industrial automation systems. Built for seamless integration, with HE10 connector and LED status indicators.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

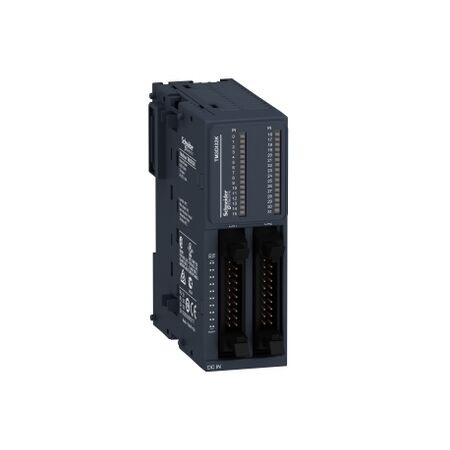

Product Name/Title: Modicon TM3, Discrete input module, 32 inputs (HE10) 24 VDC
Brand: Clipsal
SKU: TM3DI32K
Alternatively Known As: Modicon TM3 Input Module, Discrete Input Module, 32 Input Module
Technical Specifications
- Input voltage: 24 VDC
- Input current: 5 mA per input
- Response time: 4 ms (turn-on and turn-off)
- IP Rating: IP20 with protective cover
- Operating temperature: -10 to 35 °C (vertical), -10 to 55 °C (horizontal)
- Storage temperature: -25 to 70 °C
- Relative humidity: 10 to 95% without condensation
- Electrical connection: HE-10 connector
- Dimensions (H x L x W): 90mm x 81mm x 34mm
- Weight: 0.1 kg
Key Features
- 32 discrete inputs conforming to IEC 61131-2 Type 1.
- Local signaling with 1 LED per channel for input status.
- Compatible with Modicon M241, M251, M221, and M262.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial automation systems
- Control systems for machinery
- Building management systems
Standards & Compliance
- Complies with IEC 61131-2 for safety and performance standards.
Environmental Benefits
- Packaging made with recycled cardboard.
- PVC free.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Modicon TM3 Discrete Input Module is available now for immediate purchase. Ideal for industrial automation applications.
