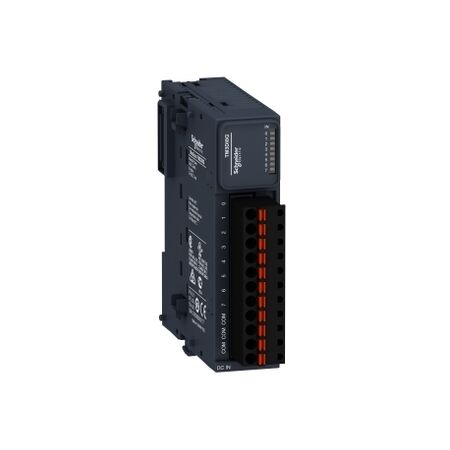

Modicon TM3, Discrete input module, 8 inputs (spring) 24 VDC

Discrete Input Module 8 Inputs | 24 VDC | Spring Terminals by Clipsal

BRAND: Clipsal

SKU: TM3DI8G

$326.40 List price: $489.60

+ −

30 Days Return Delivery Options

Discrete input module with 8 inputs and 24 VDC voltage—ideal for industrial automation systems. Built for compatibility with Modicon controllers, featuring spring terminals and LED status indicators.

Description
Attachments

Product Name/Title: Modicon TM3, Discrete input module, 8 inputs (spring) 24 VDC

Brand: Clipsal

SKU: TM3DI8G

Alternatively Known As: Modicon TM3 Input Module, Discrete Input Module, 24 VDC Input Module

Technical Specifications

Discrete input voltage: 24 VDC
Discrete input current: 7 mA per input
Response time: 4 ms (turn-on and turn-off)
IP Rating: IP20 with protective cover
Operating temperature: -10...35 °C vertical, -10...55 °C horizontal
Storage temperature: -25...70 °C
Relative humidity: 10...95% without condensation
Electrical connection: 11 x 2.5 mm² removable spring terminal block
Dimensions (H x L x W): 90mm x 84.6mm x 27.4mm
Weight: 0.085 kg

Key Features

8 discrete inputs conforming to IEC 61131-2 Type 1.
Local signalling with 1 LED per channel for input status.
Compatible with Modicon M241, M251, M221, and M262.

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance.

Applications

Industrial automation systems
Control systems for machinery
Building management systems

Standards & Compliance

Complies with IEC 61131-2 for safety and performance standards.

Environmental Benefits

Packaging made with recycled cardboard.
PVC free.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Clipsal Modicon TM3 Discrete Input Module is available now for immediate purchase. Ideal for industrial automation applications.

TM3DI8G (TM3DI8G, 384 Kb) [Download]
