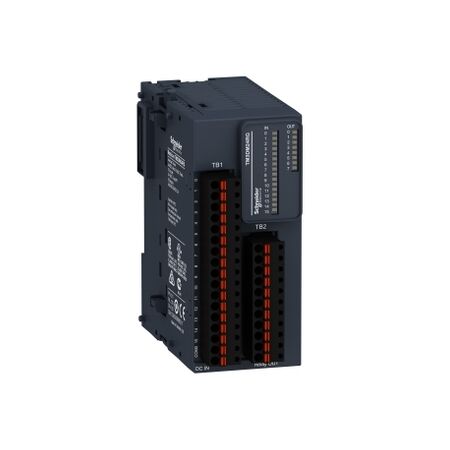

Modicon TM3, Discrete I/O module, 24 IO (16 inputs, 8 relay outputs, spring) 24 VDC

Discrete I/O Module 24 IO | 16 Inputs 8 Relay Outputs | 24 VDC by Clipsal

BRAND: Clipsal

SKU: TM3DM24RG

$648.10 List price: $972.20

+ −

30 Days Return Delivery Options

Discrete I/O module with 16 inputs and 8 relay outputs—ideal for industrial automation systems. Built for control systems, with local signaling LEDs and compatibility with Modicon M241, M251, M221, M262.

Description
Attachments

Product Name/Title: Modicon TM3, Discrete I/O module, 24 IO (16 inputs, 8 relay outputs, spring) 24 VDC

Brand: Clipsal

SKU: TM3DM24RG

Alternatively Known As: Modicon TM3 I/O Module, Discrete I/O Module, TM3DM24RG

Technical Specifications

Discrete input voltage: 24 V DC
Discrete output voltage: 24 V DC for relay output, 240 V AC for relay output
Input impedance: 3.4 kOhm
Response time: 4 ms
Maximum current per output common: 7 A
Electrical connection: 17 x 1.5 mm² removable spring terminal block
Dimensions (H x L x W): 90mm x 84.6mm x 42.9mm
Weight: 0.27 kg

Key Features

16 discrete inputs and 8 relay outputs
Mechanical durability of 20 million cycles
Local signaling with 1 LED per channel for I/O state
Compatible with Modicon M241, M251, M221, M262

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance.

Applications

Industrial automation systems
Control systems for machinery
Building management systems

Standards & Compliance

Complies with IEC 61131-2 for programmable controllers.

Environmental Benefits

Packaging made with recycled cardboard
PVC free

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Clipsal Modicon TM3 Discrete I/O Module is available now for immediate purchase. Ideal for industrial automation applications.

TM3DM24RG (TM3DM24RG, 475 Kb) [Download]
