Home/Electrical/Industrial/Switching And Control/Discrete I/O Module 8 IO | 24 VDC | Relay Outputs | Spring Terminals by Clipsal

Trade Discount 33%

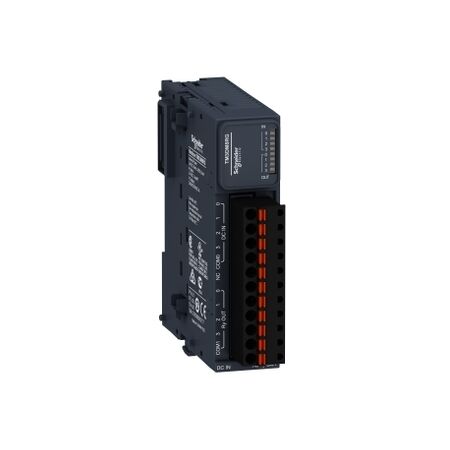

Modicon TM3, Discrete I/O module, 8 IO (4 inputs, 4 relay outputs, spring) 24 VDC

Discrete I/O Module 8 IO | 24 VDC | Relay Outputs | Spring Terminals by Clipsal

BRAND: Clipsal

SKU: TM3DM8RG

$326.40 List price: $489.60

+ −

30 Days Return Delivery Options

Discrete I/O module with 8 IO (4 inputs, 4 relay outputs) and 24 VDC—ideal for industrial automation systems. Built for control systems, with spring terminals and LED signaling for each channel.

Description
Attachments

Product Name/Title: Modicon TM3, Discrete I/O module, 8 IO (4 inputs, 4 relay outputs, spring) 24 VDC

Brand: Clipsal

SKU: TM3DM8RG

Alternatively Known As: TM3 Discrete I/O Module, Modicon TM3 I/O Module

Technical Specifications

Discrete input voltage: 24 V DC
Discrete output type: relay normally open
Maximum current per output common: 7 A
Response time: 4 ms
IP degree of protection: IP20
Operating temperature: -10...35 °C vertical, -10...55 °C horizontal
Storage temperature: -25...70 °C
Relative humidity: 10...95 % without condensation
Dimensions (H x L x W): 90mm x 84.6mm x 27.4mm
Weight: 0.95 kg

Key Features

8 I/O channels (4 inputs, 4 relay outputs)
Mechanical durability of 20 million cycles
Local signaling with 1 LED per channel
Compatible with Modicon M241, M251, M221, M262

Professional Installation Requirements

Professional installation is recommended for optimal performance and safety.

Applications

Industrial automation systems
Control systems for machinery
Building management systems

Standards & Compliance

Complies with IEC 61131-2 for programmable controllers.

Environmental Benefits

Packaging made with recycled cardboard
PVC free

Warranty Information

Standard warranty applies.

Available Now

The Clipsal Modicon TM3 Discrete I/O Module is available now for immediate purchase. Ideal for industrial automation applications.

TM3DM8RG (TM3DM8RG, 416 Kb) [Download]
