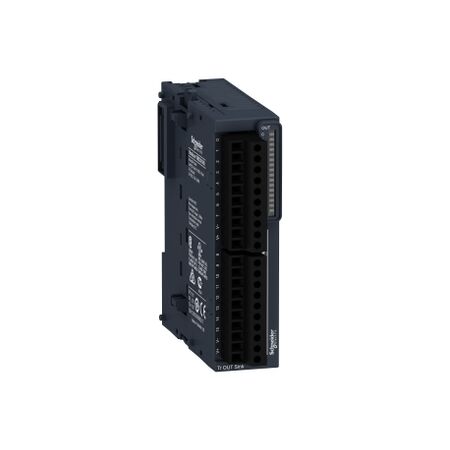

Modicon TM3, Discrete output module, 16 outputs transistor NPN (screw)

Discrete Output Module 16 Outputs | 24V DC Transistor NPN | IP20 Rated by Clipsal

BRAND: Clipsal

SKU: TM3DQ16U

$464.90 List price: $697.40

+ −

30 Days Return Delivery Options

Discrete output module with 16 transistor NPN outputs and 24V DC voltage—ideal for industrial automation systems. Built for control systems, with IP20 protection and LED status indicators.

Description
Attachments

Product Name/Title: Modicon TM3, Discrete output module, 16 outputs transistor NPN (screw)

Brand: Clipsal

SKU: TM3DQ16U

Alternatively Known As: Modicon TM3 Output Module, TM3 Discrete Output Module, Clipsal TM3 Module

Technical Specifications

Discrete output type: transistor
Discrete output voltage: 24 V DC
Discrete output current: 300 mA
Response time: 450 µs
IP degree of protection: IP20
Operating temperature: -10...35 °C (vertical), -10...55 °C (horizontal)
Relative humidity: 10...95 % without condensation
Electrical connection: 10 x 1.5 mm² removable screw terminal block
Dimensions (H x L x W): 90mm x 81.3mm x 21.4mm
Weight: 0.76 kg

Key Features

16 discrete outputs with transistor NPN logic
Local signaling with 1 LED per channel for output status
Compatible with Modicon M241, M251, M221, and M262

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance.

Applications

Industrial automation systems
Control systems for machinery
Building management systems

Standards & Compliance

Complies with IEC 61131-2 for safety and performance standards.

Environmental Benefits

Packaging made with recycled cardboard
PVC free

Warranty Information

Standard warranty applies.

Available Now

The Clipsal Modicon TM3 Discrete Output Module is available now for immediate purchase. Ideal for industrial automation applications.

TM3DQ16U (TM3DQ16U, 401 Kb) [Download]
