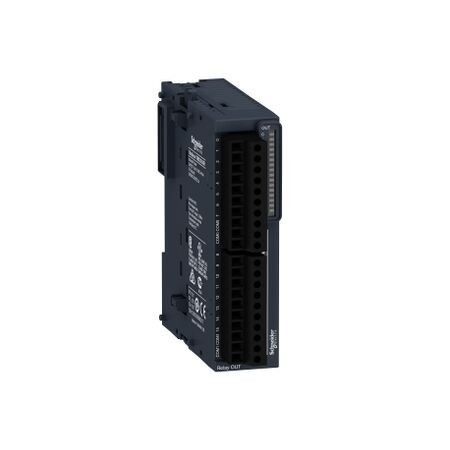

Modicon TM3, Discrete output module, 16 relay outputs (screw) 24 VDC

Discrete Output Module 16 Relay Outputs | 24 VDC | Screw Terminals by Clipsal

BRAND: Clipsal

SKU: TM3DQ16R

$510.90 List price: $766.40

+ −

30 Days Return Delivery Options

Discrete output module with 16 relay outputs and 24 VDC—ideal for industrial automation systems. Built for reliability, with mechanical durability of 20 million cycles and local LED signaling.

Description
Attachments

Product Name/Title: Modicon TM3, Discrete output module, 16 relay outputs (screw) 24 VDC

Brand: Clipsal

SKU: TM3DQ16R

Alternatively Known As: Modicon TM3 Relay Module, Discrete Output Relay Module, TM3DQ16R

Technical Specifications

Discrete output type: relay normally open.
Discrete output voltage: 240 V AC for relay output, 30 V DC for relay output.
Discrete output current: 2000 mA for relay output.
Response time: 10 ms (turn-on), 5 ms (turn-off).
Insulation: between output and internal logic at 2300 V AC.
Resistance to electrostatic discharge: 8 kV in air.
Operating altitude: 0...2000 m.
Vibration resistance: 3.5 mm at 5-8.4 Hz on DIN rail.
Dimensions (H x L x W): 90mm x 84.6mm x 27.4mm
Weight: 0.145 kg

Key Features

16 relay outputs with normally open configuration.
Mechanical durability of 20 million cycles.
Local signaling with 1 LED per channel for output status.
Compatible with Modicon M241, M251, M221, and M262.

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance.

Applications

Industrial: Automation systems, control panels, machinery

Standards & Compliance

Complies with IEC 61131-2 for safety and performance standards.

Environmental Benefits

Packaging made with recycled cardboard.
PVC free.

Warranty Information

Standard warranty applies.

Available Now

The Clipsal Modicon TM3 Discrete Output Module with 16 Relay Outputs is available now for immediate purchase. Ideal for industrial automation and control applications.

TM3DQ16R (TM3DQ16R, 439 Kb) [Download]
