Discrete Output Module 32 Outputs | 24V DC | NPN Transistor | IP20 by Clipsal
Discrete output module with 32 NPN transistor outputs and 24V DC voltage—ideal for industrial automation systems. Built for control systems, with local LED indication and compatibility with Modicon M241, M251, M221, and M262.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

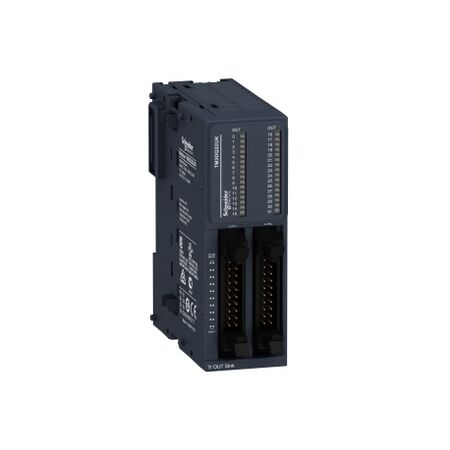

Product Name/Title: Modicon TM3, Discrete output module, 32 outputs transistor NPN (HE10)
Brand: Clipsal
SKU: TM3DQ32UK
Alternatively Known As: Modicon TM3 Output Module, Discrete Output Module, NPN Output Module
Technical Specifications
- Discrete output type: transistor
- Discrete output voltage: 24 V DC
- Discrete output current: 100 mA
- Response time: 450 µs
- IP Rating: IP20
- Operating temperature: -10 to 35 °C (vertical), -10 to 55 °C (horizontal)
- Relative humidity: 10 to 95% without condensation
- Electrical connection: HE-10 connector
- Dimensions (H x L x W): 90mm x 81mm x 34mm
- Weight: 0.112 kg
Key Features
- 32 discrete outputs with transistor NPN logic
- Local LED indication for output status
- Compatible with Modicon M241, M251, M221, and M262
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial automation systems
- Control systems for machinery
- Building management systems
Standards & Compliance
- Complies with IEC 61131-2 for safety and performance standards.
Environmental Benefits
- Packaging made with recycled cardboard
- PVC free
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Modicon TM3 Discrete Output Module is available now for immediate purchase. Ideal for industrial automation applications.
