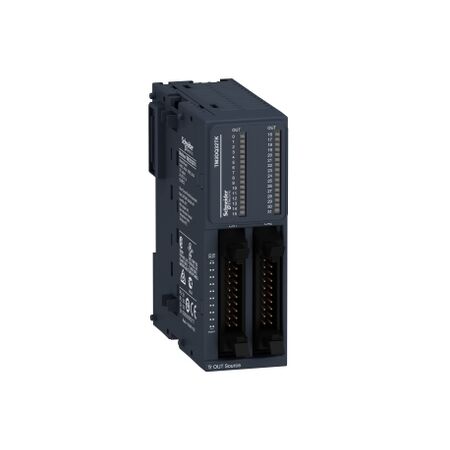

Modicon TM3, Discrete output module, 32 outputs transistor PNP (HE10)

Discrete Output Module 32 Outputs | 24V DC | PNP Transistor | IP20 by Clipsal

BRAND: Clipsal

SKU: TM3DQ32TK

$648.10 List price: $972.20

+ −

30 Days Return Delivery Options

Discrete output module with 32 PNP transistor outputs and 24V DC voltage—ideal for industrial automation systems. Built for compatibility with Modicon controllers, featuring IP20 protection and LED status indicators.

Description
Attachments

Product Name/Title: Modicon TM3, Discrete output module, 32 outputs transistor PNP (HE10)

Brand: Clipsal

SKU: TM3DQ32TK

Alternatively Known As: Modicon TM3 Output Module, Discrete Output Module, PNP Output Module

Technical Specifications

Discrete output voltage: 24 V DC
Discrete output current: 100 mA
Response time: 450 µs
IP Rating: IP20
Operating temperature: -10...35 °C (vertical), -10...55 °C (horizontal)
Storage temperature: -25...70 °C
Relative humidity: 10...95% without condensation
Electrical connection: HE-10 connector
Dimensions (H x L x W): 90mm x 81mm x 34mm
Weight: 0.112 kg

Key Features

32 discrete outputs with transistor PNP logic.
Local signaling with 1 LED per channel for output status.
Compatible with Modicon M241, M251, M221, and M262.

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance.

Applications

Industrial automation systems
Control systems for machinery
Building management systems

Standards & Compliance

Complies with IEC 61131-2 for safety and performance standards.

Environmental Benefits

Packaging made with recycled cardboard.
PVC free.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Clipsal Modicon TM3 Discrete Output Module is available now for immediate purchase. Ideal for industrial automation applications.

TM3DQ32TK (TM3DQ32TK, 423 Kb) [Download]
