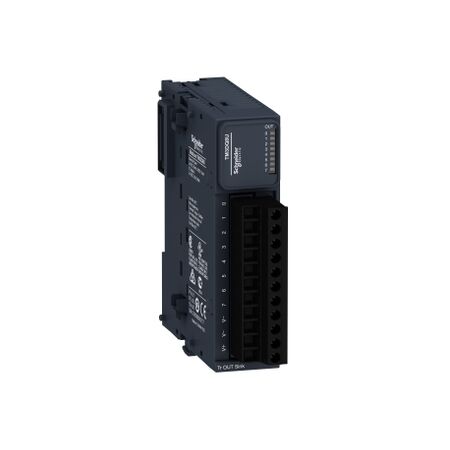

Modicon TM3, Discrete output module, 8 outputs transistor NPN (screw)

Discrete Output Module 8 Outputs NPN | 24V DC | IP20 Rated by Clipsal

BRAND: Clipsal

SKU: TM3DQ8U

$326.40 List price: $489.60

+ −

30 Days Return Delivery Options

Discrete output module with 8 NPN transistor outputs and 24V DC voltage—ideal for industrial automation systems. Built for reliable control, with IP20 rating and LED status indicators.

Description
Attachments

Product Name/Title: Modicon TM3, Discrete output module, 8 outputs transistor NPN (screw)

Brand: Clipsal

SKU: TM3DQ8U

Alternatively Known As: Modicon TM3 Output Module, TM3DQ8U, Discrete Output Module

Technical Specifications

Discrete output voltage: 24 V DC
Discrete output current: 50 mA
Response time: 450 µs
IP Rating: IP20
Operating temperature: -10...35 °C (vertical), -10...55 °C (horizontal)
Relative humidity: 10...95% without condensation
Electrical connection: 11 x 2.5 mm² removable screw terminal block
Dimensions (H x L x W): 90mm x 84.6mm x 27.4mm
Weight: 0.76 kg

Key Features

8 discrete outputs with transistor NPN logic
Local signaling with 1 LED per channel for output status
Compatible with Modicon M241, M251, M221, M262

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance.

Applications

Industrial automation systems
Control systems for machinery
Building management systems

Standards & Compliance

Complies with IEC 61131-2 for safety and performance standards.

Environmental Benefits

Packaging made with recycled cardboard
PVC free

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Clipsal Modicon TM3 Discrete Output Module is available now for immediate purchase. Ideal for industrial automation applications.

TM3DQ8U (TM3DQ8U, 387 Kb) [Download]
