Discrete Output Module 8 Relay Outputs | 24 VDC | LED Status by Clipsal
Discrete output module with 8 relay outputs and 24 VDC voltage—ideal for industrial automation systems. Built for versatile control, with local LED indication for output status.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

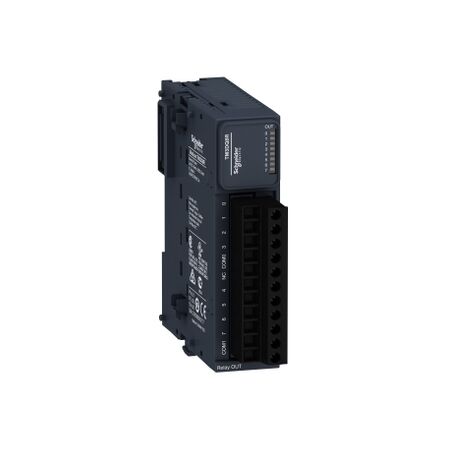

Product Name/Title: Modicon TM3, Discrete output module, 8 relay outputs (screw) 24 VDC
Brand: Clipsal
SKU: TM3DQ8R
Alternatively Known As: Modicon TM3 Relay Module, Discrete Output Relay Module, 8 Channel Relay Module
Technical Specifications
- Discrete output type: relay normally open
- Discrete output voltage: 24 V DC for relay output
- Discrete output current: 2000 mA for relay output
- Response time: 10 ms (turn-on), 5 ms (turn-off)
- Insulation: 2300 V AC between output and internal logic
- Resistance to electrostatic discharge: 8 kV in air
- Operating altitude: 0...2000 m
- Vibration resistance: 3.5 mm at 5-8.4 Hz on DIN rail
- Dimensions (H x L x W): 90mm x 84.6mm x 27.4mm
- Weight: 0.11 kg
Key Features
- 8 relay outputs for versatile control
- Mechanical durability of 20 million cycles
- Local LED indication for output status
- Compatible with Modicon M241, M251, M221, M262
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial automation systems
- Control systems for machinery
- Building management systems
Standards & Compliance
- Complies with IEC 61131-2 for safety and performance standards.
Environmental Benefits
- Packaging made with recycled cardboard
- PVC free
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Clipsal Modicon TM3 Discrete Output Module with 8 Relay Outputs is available now for immediate purchase. Ideal for industrial automation and control systems.
