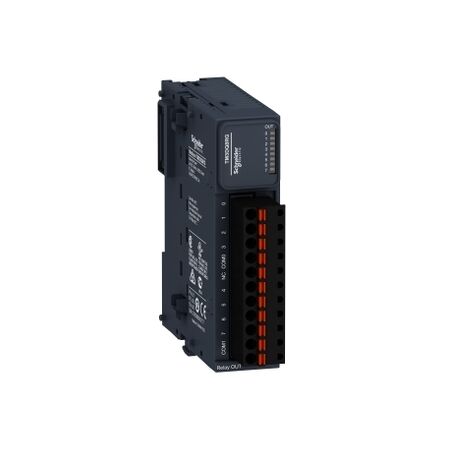

Modicon TM3, Discrete output module, 8 relay outputs (spring) 24 VDC

Discrete Output Module 8 Relay Outputs | 24 VDC | Spring Terminals by Clipsal

BRAND: Clipsal

SKU: TM3DQ8RG

$371.00 List price: $556.50

+ −

30 Days Return Delivery Options

Discrete output module with 8 relay outputs and 24 VDC voltage—ideal for industrial automation systems. Built for versatile control, with mechanical durability and LED status indicators.

Description

Product Name/Title: Modicon TM3, Discrete output module, 8 relay outputs (spring) 24 VDC

Brand: Clipsal

SKU: TM3DQ8RG

Alternatively Known As: Modicon TM3 Relay Module, Discrete Output Relay Module, TM3DQ8RG

Technical Specifications

Discrete output type: relay normally open
Discrete output voltage: 24 V DC for relay output
Discrete output current: 2000 mA for relay output
Response time: 10 ms (turn-on), 5 ms (turn-off)
Insulation: between output and internal logic at 2300 V AC
Resistance to electrostatic discharge: 8 kV in air
Operating altitude: 0...2000 m
Vibration resistance: 3.5 mm at 5-8.4 Hz on DIN rail
Dimensions (H x L x W): 90mm x 84.6mm x 27.4mm
Weight: 0.11 kg

Key Features

8 relay outputs for versatile control
Mechanical durability of 20 million cycles
Local signaling with 1 LED per channel for output status
Compatible with Modicon M241, M251, M221, and M262

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance.

Applications

Industrial automation systems
Control systems for machinery
Building management systems

Standards & Compliance

Complies with IEC 61131-2 for safety and performance standards.

Environmental Benefits

Packaging made with recycled cardboard
PVC free

Warranty Information

Standard warranty applies.

Available Now

The Clipsal Modicon TM3 Discrete Output Module with 8 Relay Outputs is available now for immediate purchase. Ideal for industrial automation and control systems.
