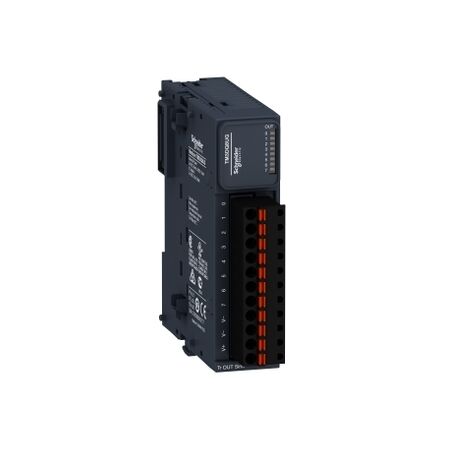

Modicon TM3, Discrete output module, 8 outputs transistor NPN (spring)

Discrete Output Module 8 Outputs Transistor NPN | 24V DC | IP20 by Clipsal

BRAND: Clipsal

SKU: TM3DQ8UG

$326.40 List price: $489.60

+ −

30 Days Return Delivery Options

Discrete output module with 8 transistor NPN outputs and 24V DC voltage—ideal for industrial automation systems. Built for control systems, with IP20 protection and LED status indicators.

Description
Attachments

Product Name/Title: Modicon TM3, Discrete output module, 8 outputs transistor NPN (spring)

Brand: Clipsal

SKU: TM3DQ8UG

Alternatively Known As: Modicon TM3 Output Module, TM3 Discrete Output Module, Clipsal TM3 Module

Technical Specifications

Discrete output type: transistor
Discrete output voltage: 24 V DC
Discrete output current: 50 mA
Response time: 450 µs
IP degree of protection: IP20
Operating temperature: -10...35 °C vertical, -10...55 °C horizontal
Vibration resistance: 3.5 mm at 5-8.4 Hz
Shock resistance: 15 gn for 11 ms
Dimensions (H x L x W): 90mm x 84.6mm x 27.4mm
Weight: 0.76 kg

Key Features

8 discrete outputs with transistor NPN logic
Local signaling with 1 LED per channel for output status
Compatible with Modicon M241, M251, M221, and M262

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance.

Applications

Industrial automation systems
Control systems for machinery
Building management systems

Standards & Compliance

Complies with EN/IEC 61131-2 for safety and performance standards.

Environmental Benefits

Complies with CE and RoHS regulations for environmental safety.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Clipsal Modicon TM3 Discrete Output Module is available now for immediate purchase. Ideal for industrial automation applications.

TM3DQ8UG (TM3DQ8UG, 390 Kb) [Download]
