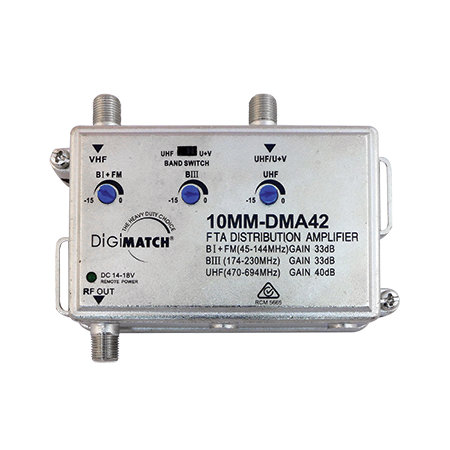

Distribution Amplifier UHF/VHF 40dB with 4G/5G Filter and Power Supply

Distribution Amplifier UHF/VHF 40dB | 4G/5G Filter | Power Supply Included by Matchmaster

BRAND: Matchmaster

SKU: 10MM-DMA42

$349.20 List price: $422.60

+ −

30 Days Return Delivery Options

Distribution amplifier with 40dB gain and integrated 4G/5G filter—ideal for homes and commercial spaces. Built for optimal signal amplification, with included power supply for easy installation.

Description
Attachments

Product Name/Title: Distribution Amplifier UHF/VHF 40dB with 4G/5G Filter and Power Supply

Brand: Matchmaster

SKU: 10MM-DMA42

Alternatively Known As: UHF/VHF Distribution Amplifier, 4G/5G Filtered Signal Amplifier, Line Powered Distribution Amplifier

Technical Specifications

Frequency Range: 45-694MHz
Number of Inputs: 2 'F' Type
Number of Outputs: 1 'F' Type
Gain: UHF 40dB, VHF 33dB
Input & Output Return Loss: >10dB
Noise Figure: <8dB
Gain Adjustment: VHF 15dB
Maximum Output: 60dB
IMR351MR: 115dBµV (2 Channels), 103dBµV (Cenelec 42 Channels)
Screening: VHF >75dB, UHF >65dB
Input/Output Impedance: 75Ω
Power Source: 14-18VDC
Power Consumption: 200mA
Dimensions (H x L x W): 50mm x 120mm x 150mm
Weight: 0.5 kg

Key Features

Multiband remote powered amplifier with maximum 40dB UHF and 33dB VHF and FM gain
Independent 15dB gain adjustment per band
Switchable inputs for separate UHF & VHF or combined UHF/VHF
Die-cast metal casing for excellent heat dissipation
Built-in 4G/5G LTE filter at 694MHz
Includes 14V DC power supply

Professional Installation Requirements

Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.

Applications

FM, VHF, and UHF signal distribution for residential and commercial TV and radio systems
Signal amplification in areas with 4G/5G interference
Use in antenna systems requiring multiband amplification and filtering

Standards & Compliance

Complies with AS/NZS 60950 – Safety of IT and Communication Equipment

Environmental Benefits

Built-in 4G/5G filter reduces interference, improving signal quality and reducing need for additional equipment
Energy-efficient design with low power consumption (200mA)

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Matchmaster Distribution Amplifier UHF/VHF 40dB with 4G/5G Filter and Power Supply is available now for immediate purchase. Ideal for enhancing signal quality in residential and commercial antenna systems.

Brochure (10mm-dma42_brochure.pdf, 591 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
