Trade Discount 25%

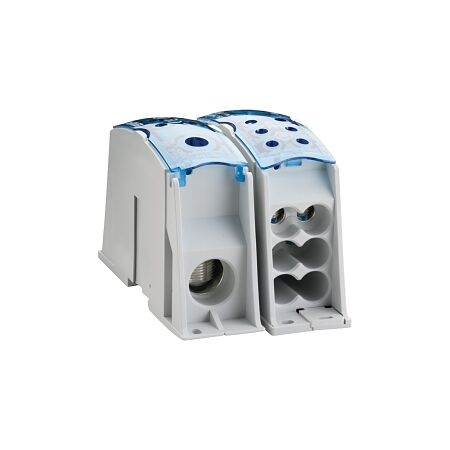

Distribution Block 1010A Input | 2 x 95-185mm Output | 12 x 4-25mm by NHP
Distribution block with 1010A input and versatile output range—ideal for industrial and commercial power distribution. Built for efficiency, with 1000V insulation and 630A max current.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: nVent ERIFLEX Distribution Blocks Active Link 1010A Input 2 x 95 to 185mm Output 12 x 4 to 25mm
Brand: NHP
SKU: 569205
Alternatively Known As: Active Link Distribution Block, ERIFLEX Distribution Block, Electrical Distribution Block
Technical Specifications
- Number of poles: 1
- Rated insulation voltage: 1000 V
- Short time withstand current: 42.9 kA
- Max rated current: 630 A
- Conductor material: Aluminium/copper
- Conductor cross section: 4-25 mm²
- Dimensions (H x L x W): 78mm x 127mm x 44mm
- Weight: 1.5 kg
Key Features
- Rated insulation voltage of 1000 V.
- Short time withstand current of 42.9 kA.
- Max rated current of 630 A.
- Compatible with conductor cross sections from 4 to 25 mm².
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in electrical installations
- Commercial: Suitable for various electrical applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient power distribution reduces energy loss and enhances system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The nVent ERIFLEX Distribution Blocks Active Link 1010A is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
Non-Returnable & Non-Cancellable
