Distribution Block 160A | 1 x 10-40mm In, 6 x 2.5-16mm Out | Compact Design by NHP
Distribution block with 160A capacity and versatile conductor support—ideal for industrial and commercial electrical systems. Built for durability, with compact design for efficient power distribution.
Sign in
Please login to continue to your account.

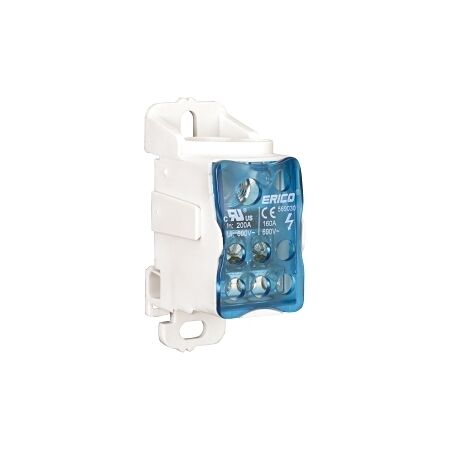

Product Name/Title: nVent ERIFLEX Distribution Blocks 160A Cu In 1 x 10 to 40mm Out 1 x 6 to 16mm and 6 x 2.5 to 16mm
Brand: NHP
SKU: 569030
Alternatively Known As: Distribution Block, Terminal Block, Power Distribution Block
- Number of Poles: 1
- Rated Insulation Voltage: 1000 V
- Short Time Withstand Current: 11.8 kA
- Conductor Material: Aluminium/copper
- Conductor Cross Section: 2.5-16 mm²
- Dimensions (H x L x W): 77mm x 46mm x 29mm
- Weight: 0.5 kg
- Rated for a maximum current of 160 A.
- Supports conductor sizes from 2.5 mm² to 16 mm².
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in electrical installations
- Commercial: Use in various electrical systems
- Complies with relevant Australian electrical standards.
- Durable design reduces the need for frequent replacements.
1 year warranty against manufacturing defects.
The nVent ERIFLEX Distribution Blocks 160A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
