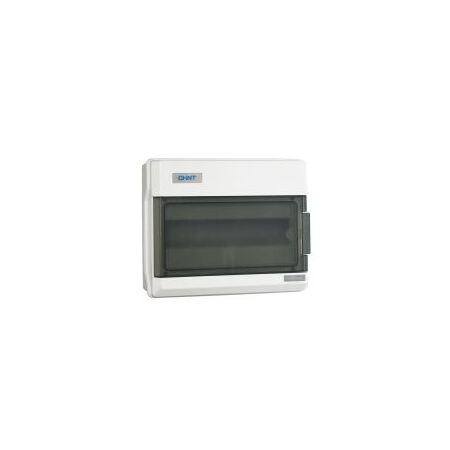

Distribution Board 12 Module Surface Mount IP65 100A DB4 Chint
Chint DB4 12 module weatherproof enclosure features IP65, 100A rating and UV resistant polymer. Ideal for outdoor and industrial MCB and RCBO installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CHINT DB4-12 Waterproof Distribution Box, 12-Pole Loadcentre, Weatherproof Distribution Board Enclosure
Technical Specifications
- Module Capacity: 12 modules
- Rated Current: 100 A
- Ingress Protection: IP65
- Mounting Type: Surface mount
- Material: Flame-retardant, self-extinguishing polymer enclosure
- Compatibility: DIN-rail MCBs, RCBOs, RCDs, isolators and other modular devices
- Terminals: Prefabricated neutral and earth terminals
- Gland Entry: Gland holes can be opened to suit installation requirements
- Operating Temperature: -25°C to +40°C
- Fire Resistance: Scorching wire temperature up to 650°C
- Configuration: Available with single-line or double-line terminal arrangements
- Dimensions (H x L x W): 109mm x 229mm x 273mm
- Weight: 1.2 kg
Key Features
- IP65 protection against dust and water jets
- Suitable for outdoor, damp and industrial environments
- UV-resistant polymer enclosure for improved weather durability
- Accommodates 12 DIN-rail modules
- Supplied with prefabricated rails and terminals
- Suitable for MCB, RCBO, RCD and isolator installation
- Flame-retardant, self-extinguishing and non-toxic enclosure material
- Lockable and non-lockable configurations available within the DB4 series
Professional Installation Requirements
- Installation, wiring and commissioning must be performed by a licensed electrician in accordance with AS/NZS 3000, applicable assembly requirements and local electrical regulations. Cable entries must be sealed correctly to maintain the IP65 rating.
Applications
- Outdoor residential distribution boards
- Industrial and commercial sub-distribution
- Workshops, plant rooms and utility areas
- Weatherproof MCB, RCBO, RCD and isolator installations
- Damp or dusty locations requiring enclosed DIN-rail protection
Standards & Compliance
- AS/NZS 61439.3 for low-voltage distribution boards intended for operation by ordinary persons, subject to verification of the completed assembly
- AS/NZS 3000 Wiring Rules for installation and electrical connection
- IEC 60670 and IEC 61439 series referenced for the DB4 product range
Environmental Benefits
- UV-resistant construction can extend enclosure service life and reduce replacement waste
- Durable polymer construction is suitable for long-term outdoor exposure when correctly installed
- Flame-retardant enclosure material supports safer electrical installations and reduced fire-related damage
- Polymer components should be separated and recycled through appropriate facilities at end of service life where local recycling streams accept them
Warranty Information
CHINT warranty coverage is subject to the applicable sales contract and warranty terms. Product quality claims are generally handled through authorised CHINT service or distribution channels; installation damage, misuse and unauthorised modification may be excluded.
Available Now
Available through authorised CHINT distributors in Australia.
