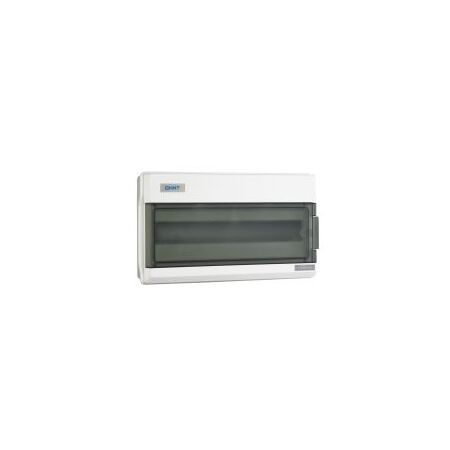

Distribution Board 18 Module Surface Mount IP65 100A DB4 Chint
Chint DB4 18 module weatherproof enclosure features IP65, 100A rating and UV resistant polymer. Ideal for outdoor and industrial MCB and RCBO installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CHINT DB4-18 Waterproof Distribution Box, 18-Way Outdoor Distribution Board, IP65 Weatherproof Enclosure
Technical Specifications
- Module Capacity: 18 modules
- Rated Current: 100A
- Ingress Protection: IP65
- Mounting Type: Surface mount
- Material: Flame-retardant, UV-resistant polymer
- Compatible Devices: MCBs, RCBOs, RCDs and isolators
- Operating Temperature: -25°C to +40°C
- Cable Entry: Gland holes can be opened to suit installation requirements
- Applicable Product Standards: IEC 60670 and IEC 61439
- Dimensions (H x L x W): 229mm x 381mm x 109mm
- Weight: 2.1 kg
Key Features
- IP65 protection against dust and water jets
- Suitable for outdoor, damp and industrial environments
- UV-resistant polymer enclosure for improved outdoor durability
- Accommodates 18 modular electrical devices
- Compatible with common MCB, RCBO, RCD and isolator equipment
- Flame-retardant and self-extinguishing enclosure material
- Surface-mount design for straightforward installation
- Transparent or opaque door options may be available depending on configuration
Professional Installation Requirements
- Installation and connection to mains electrical wiring must be performed by a licensed electrician in accordance with AS/NZS 3000, applicable switchboard assembly requirements and the manufacturer's instructions.
Applications
- Outdoor power distribution
- Industrial electrical installations
- Residential and commercial sub-distribution boards
- Outdoor charging and auxiliary power installations
- Wet-area and damp-environment electrical enclosures
- MCB, RCBO, RCD and isolator installations
Standards & Compliance
- AS/NZS 3000: Electrical installations, for installation and wiring requirements
- AS/NZS 61439.3: Low-voltage switchgear and controlgear assemblies intended to be operated by ordinary persons, where applicable
- AS/NZS 60529: Degrees of protection provided by enclosures, applicable to the IP65 classification
Environmental Benefits
- UV-resistant polymer construction supports a longer service life in outdoor installations
- Durable enclosure materials can reduce replacement frequency and associated waste
- Flame-retardant, self-extinguishing construction supports safer long-term use
- Polymer material is corrosion-resistant, avoiding deterioration associated with exposed metal enclosures
Warranty Information
Warranty is subject to applicable CHINT and authorised Australian distributor terms, together with Australian Consumer Law. Confirm the specific warranty conditions at purchase.
Available Now
Available through authorised CHINT distributors in Australia.
