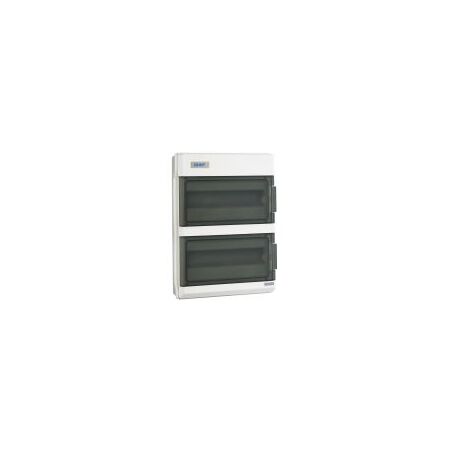

Distribution Board 24 Module Surface Mount IP65 100A DB4 Chint
Chint DB4 24 module weatherproof enclosure features IP65, 100A rating and UV resistant polymer. Ideal for outdoor and industrial MCB and RCBO installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 24-Way Waterproof Distribution Box, IP65 Distribution Board Enclosure, Outdoor MCB Enclosure, Outdoor RCBO Enclosure
Technical Specifications
- Model: DB4-24
- Module Capacity: 24 modules
- Rated Current: 100A
- Protection Rating: IP65
- Material: ABS body with polycarbonate door
- Device Compatibility: MCBs, RCBOs, RCDs and isolators
- Fire Resistance: 650°C scorching-wire resistance for 30 seconds
- Operating Temperature: -25°C to +40°C
- Mounting Type: Surface mount
- Cable Entry: Gland holes can be opened to suit installation requirements
- Dimensions (H x L x W): 109mm x 381mm x 274mm
- Weight: 1.7 kg
Key Features
- IP65 protection against dust and water ingress
- UV-resistant polymer enclosure for outdoor and exposed installations
- Suitable for residential, commercial and industrial power distribution
- Designed to accept modular MCB, RCBO, RCD and isolator devices
- Prefabricated DIN rails and terminal provisions simplify installation
- Flame-retardant, self-extinguishing and non-toxic polymer construction
- Surface-mount design with customisable cable gland entry points
Professional Installation Requirements
- Installation and connection to mains electrical circuits must be performed by a licensed electrician in accordance with AS/NZS 3000 and the requirements applying to the completed distribution-board assembly. Cable entries must be sealed correctly to maintain the IP65 rating.
Applications
- Outdoor residential distribution boards
- Commercial and industrial sub-boards
- MCB and RCBO installations
- Power distribution in damp or dusty environments
- Garden, utility, workshop and plant-room electrical installations
Standards & Compliance
- AS/NZS 61439.3:2016 – applicable to low-voltage distribution boards intended to be operated by ordinary persons, subject to verification of the completed assembly
- AS/NZS 60670.1:2021 – applicable to boxes and enclosures for electrical accessories within its scope
- AS/NZS 3000:2018 – installation requirements for electrical installations
Environmental Benefits
- UV-resistant and corrosion-resistant polymer construction supports a longer service life in outdoor environments
- Durable enclosure construction can reduce replacement frequency and material waste
- Polymer enclosure construction is lighter than comparable metal enclosures, potentially reducing handling and transport impacts
Warranty Information
CHINT’s general warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus supplied through authorised sales channels, unless a customer contract specifies different terms. Warranty is subject to correct installation, use and maintenance.
Available Now
Available through authorised CHINT distributors in Australia.
