Trade Discount 20%

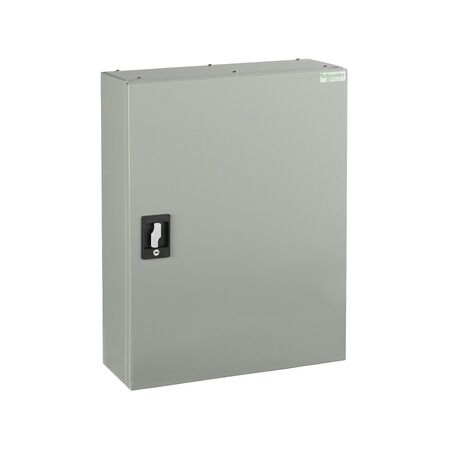

Distribution Board 24 Poles 250A Main Switch IP42 Grey Clipsal
Clipsal Distribution Board Poles Main Switch Rated Grey features 415V, 250A and 25kA. 24 poles with a 250A main switch for distribution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operational voltage: 415 V
- Rated operational current: 250 A
- Breaking capacity: 25 kA
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6 kV
- Enclosure material: Steel
- Network frequency: 50 Hz
- Enclosure mounting: Surface
- Dimensions (H x L x W): 750mm x 235mm x 580mm
- Weight: 39 kg
Key Features
- 24 poles with a 250A main switch for robust distribution.
- IP42 rated for protection against solid objects and water.
- Compliant with EU RoHS directive and free of toxic heavy metals.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- Industrial: Factories, manufacturing facilities
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Compliant with environmental regulations and free of substances of very high concern.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Clipsal Acti9 Isobar Standard Distribution Board is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
