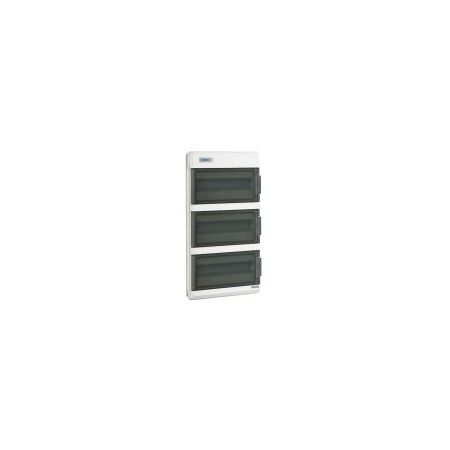

Distribution Board 36 Module Surface Mount IP65 100A DB4 Chint
Chint DB4 36 module weatherproof enclosure features IP65, 100A rating and UV resistant polymer. Ideal for outdoor and industrial MCB and RCBO installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CHINT DB4-36 Waterproof Distribution Box, 36-Way Outdoor Distribution Board, IP65 Modular Distribution Enclosure
Technical Specifications
- Module Capacity: 36 modules
- Rated Current: 100A
- Protection Rating: IP65
- Mounting Type: Surface mount
- Material: Flame-retardant polymer enclosure with polycarbonate door
- Compatible Devices: MCBs, RCBOs, RCDs, isolators and other modular devices
- Operating Temperature: -25°C to +40°C
- Fire Resistance: Scorching wire temperature up to 650°C
- Cable Entry: Gland holes can be opened to suit installation requirements
- Manufacturer Standards: IEC 60670 and IEC 61439
- Dimensions (H x L x W): 109mm x 532mm x 274mm
- Weight: 4.2 kg
Key Features
- Suitable for outdoor, damp and industrial environments
- IP65 protection against dust ingress and low-pressure water jets
- UV-resistant enclosure for improved outdoor durability
- Accommodates up to 36 DIN modules
- Prefabricated rails and terminal arrangements simplify installation
- Suitable for MCB, RCBO, RCD and isolator installations
- Flame-retardant, self-extinguishing and non-toxic polymer construction
- Supports cable entry configuration to suit site requirements
Professional Installation Requirements
- Installation and connection must be carried out by a licensed electrician in accordance with AS/NZS 3000, the manufacturer's instructions and applicable local electrical regulations. The completed distribution-board assembly must be correctly selected, configured, verified and installed for the intended application.
Applications
- Outdoor residential distribution boards
- Commercial and industrial power distribution
- Weather-exposed electrical installations
- Industrial MCB, RCBO and RCD enclosures
- Agricultural, utility and service-area distribution points
Standards & Compliance
- AS/NZS 61439.3 may apply to the completed low-voltage distribution-board assembly where it is intended to be operated by ordinary persons; verify assembly compliance and certification for the specific installation
- AS/NZS 3000 applies to the selection, installation and wiring of the distribution board
Environmental Benefits
- UV-resistant polymer construction can extend service life in outdoor installations and reduce replacement waste
- Flame-retardant, durable enclosure material supports longer-term product use
- Enclosure design supports modular component replacement, helping reduce whole-board disposal
Warranty Information
CHINT's general warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus, subject to authorised sales channels, contract terms and the manufacturer's exclusions.
Available Now
Available through authorised CHINT distributors in Australia.
