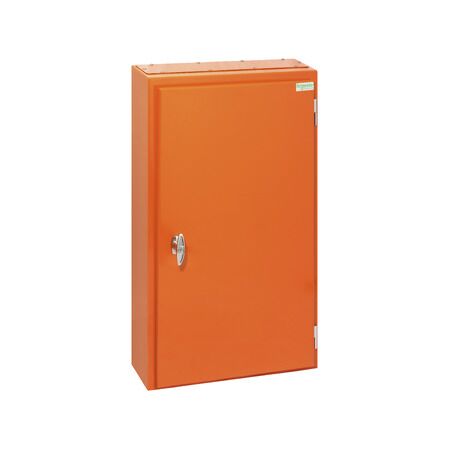

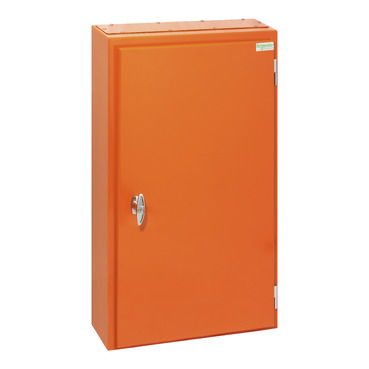

Distribution Board 36 Pole IP56 | Dust & Water Resistant | Lockable Door | by Clipsal
The Distribution Board 36 Pole IP56 is designed for extensive circuit management in commercial and industrial settings. With an IP56 rating for superior dust and water protection, this robust board features a lockable door for enhanced security and is suitable for 18mm DIN rail circuit breakers. Ideal for large residential complexes and industrial facilities, it ensures reliable power distribution and circuit protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Distribution Board 36 Pole IP56 | Dust & Water Resistant | Lockable Door | by Clipsal
Brand: Clipsal
SKU: SCHMD236D31X15
Alternatively Known As: Clipsal 36 Pole Distribution Board, Clipsal IP56 DB, Clipsal SCHMD236D31X15, Weatherproof Distribution Board, 36 Way Electrical Board
Technical Specifications
- Number of Poles: 36
- Enclosure Rating: IP56 (dust and water resistant)
- Mounting: Surface mount
- Material: Powder-coated steel
- Lockable door: Yes
- Cable entry: Multiple knockouts for flexible wiring
- Suitable for: 18mm DIN rail circuit breakers
- Dimensions (H x L x W): 800mm x 180mm x 600mm
- Weight: 8.5 kg
Key Features
- 36 pole capacity for extensive circuit management
- IP56 rated for superior dust and water ingress protection
- Durable construction suitable for harsh environments
- Lockable door for enhanced security
- Surface mount design for easy installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial buildings: electrical distribution and circuit protection
- Industrial facilities: robust power management
- Large residential complexes: main or sub-distribution board
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61439 – Low-voltage switchgear and controlgear assemblies
Environmental Benefits
- Long-lasting, corrosion-resistant materials reduce replacement frequency and waste
- Weatherproof design minimizes risk of electrical faults and associated environmental hazards
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Distribution Board 36 Pole X15 OR IP56 (SCHMD236D31X15) is available for immediate purchase. Ideal for commercial, industrial, and large residential electrical distribution applications.
