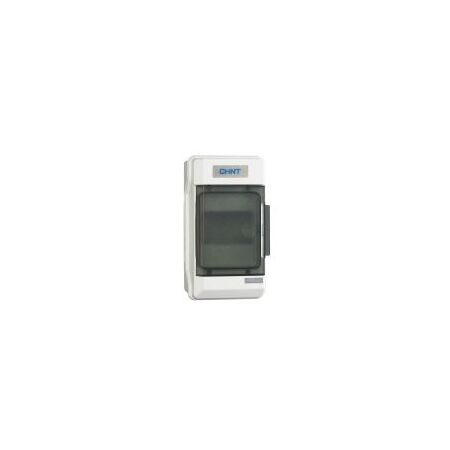

Distribution Board 4 Module Surface Mount IP65 100A DB4 Chint
Chint DB4 4 module weatherproof enclosure features IP65, 100A rating and UV resistant polymer. Ideal for outdoor and industrial MCB and RCBO installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CHINT DB4-4 Waterproof Distribution Box, 4-Module Weatherproof Enclosure, Outdoor DIN-Rail Distribution Board
Technical Specifications
- Rated Current: 100A
- Module Capacity: 4 DIN modules
- Installation Method: Surface mount
- Protection Rating: IP65
- Material: Flame-retardant polycarbonate plastic
- Ingress Protection: Dust-tight and protected against water jets
- UV Resistance: Yes
- Fire Resistance: 650°C scorching-wire test temperature
- Compatible Devices: MCBs, RCBOs, RCDs, isolators and other modular devices
- Cable Entry: Gland holes can be opened to suit installation requirements
- Dimensions (H x L x W): 100mm x 200mm x 107mm
- Weight: 0.4 kg
Key Features
- Compact 4-module DIN-rail enclosure for terminal power distribution
- IP65 protection for outdoor and damp environments
- UV-resistant polymer enclosure for improved durability in exposed locations
- Flame-retardant, self-extinguishing and non-toxic construction
- Suitable for MCB, RCBO, RCD and isolator installations
- Prefitted rail and terminals for efficient assembly
- Cable entry points can be configured while maintaining enclosure integrity
Professional Installation Requirements
- Mains electrical installation and connection should be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical regulations. The completed assembly must be correctly selected, wired, labelled and verified for its intended application.
Applications
- Outdoor residential distribution boards
- Industrial and commercial terminal power distribution
- Damp or dusty indoor electrical installations
- MCB, RCBO, RCD and isolator enclosures
- Small machinery, control and auxiliary power circuits
Standards & Compliance
- AS/NZS 60670.1:2021 may apply to the enclosure as a box or enclosure for electrical accessories
- AS/NZS 61439 may apply to the completed low-voltage distribution-board assembly, subject to the design, component selection and required verification
- AS/NZS 3000:2018 applies to electrical installation practices and wiring requirements
Environmental Benefits
- UV-resistant construction can extend service life and reduce replacement waste
- Flame-retardant polymer construction supports safer long-term use in electrical installations
- Durable IP65 enclosure helps protect internal components and reduce premature equipment replacement
Warranty Information
CHINT general warranty policy for other low-voltage apparatus provides 27 months from the date of manufacture against defects in materials and workmanship when purchased through authorised sales channels; contract terms and exclusions apply.
Available Now
Available through authorised CHINT distributors in Australia.
