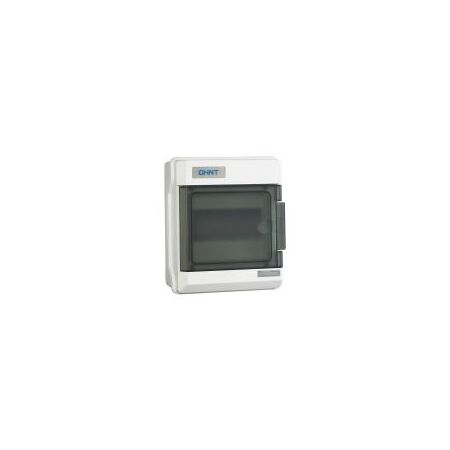

Distribution Board 6 Module Surface Mount IP65 100A DB4 Chint
Chint DB4 6 module weatherproof enclosure features IP65, 100A rating and UV resistant polymer. Ideal for outdoor and industrial MCB and RCBO installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CHINT DB4-6 Waterproof Distribution Box, 6-Way Weatherproof Distribution Board, Outdoor MCB Enclosure
Technical Specifications
- Rated Current: 100A
- Module Capacity: 6 modules
- Protection Rating: IP65
- Installation Method: Surface mount
- Material: Flame-retardant, self-extinguishing polymer enclosure
- UV Resistance: Suitable for outdoor exposure
- Operating Temperature: -25°C to +40°C
- Compatible Devices: MCBs, RCBOs, RCDs, isolators and other DIN rail modular devices
- Rail and Terminals: Prefabricated DIN rail and terminal arrangement
- Fire Resistance: Scorching wire temperature up to 650°C
- Ingress Protection: Dust-tight and protected against low-pressure water jets
- Manufacturer Series: DB4 waterproof distribution box
- Dimensions (H x L x W): 100mm x 200mm x 165mm
- Weight: 0.7 kg
Key Features
- Six-module capacity for compact circuit distribution
- IP65 protection for outdoor and damp environments
- 100A rated enclosure for low-voltage distribution applications
- UV-resistant polymer construction for improved outdoor durability
- Flame-retardant and self-extinguishing enclosure material
- Prefabricated DIN rail and terminal arrangement simplifies installation
- Suitable for MCB, RCBO, RCD and isolator installations
- Cable gland openings can be configured while maintaining enclosure integrity
Professional Installation Requirements
- Installation, wiring and commissioning must be performed by a licensed electrician in accordance with AS/NZS 3000 and the requirements applying to the completed distribution assembly. The enclosure should be correctly sealed and suitably rated for its installed environment.
Applications
- Outdoor residential distribution boards
- Commercial and industrial sub-distribution
- Garden, workshop and utility power circuits
- Damp or moisture-prone indoor areas
- MCB, RCBO, RCD and isolator enclosures
- Small control and terminal power distribution systems
Standards & Compliance
- Manufacturer-declared compliance with IEC 60670 and IEC 61439
- Australian installations should be assessed against AS/NZS IEC 60670.1:2021 and the applicable AS/NZS 61439 series requirements
- Installation must comply with AS/NZS 3000
Environmental Benefits
- UV-resistant construction can extend service life and reduce replacement waste
- Flame-retardant polymer enclosure improves product durability in demanding environments
- Modular DIN rail design allows individual protective devices to be replaced without replacing the complete enclosure
- Polymer components may be recyclable through appropriate plastics recycling streams
Warranty Information
CHINT’s general policy for other low-voltage apparatus provides a 27-month warranty from the date of manufacture against defects in materials and workmanship, subject to authorised sales channels, contract terms and warranty exclusions.
Available Now
Available through authorised CHINT distributors in Australia.
