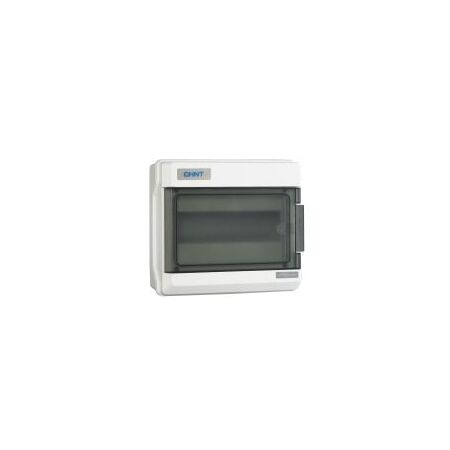

Distribution Board 9 Module Surface Mount IP65 100A DB4 Chint
Chint DB4 9 module weatherproof enclosure features IP65, 100A rating and UV resistant polymer. Ideal for outdoor and industrial MCB and RCBO installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CHINT DB4-9 Distribution Box, 9-Module Weatherproof Distribution Board, IP65 Electrical Enclosure
Technical Specifications
- Module Capacity: 9 modules in one row
- Rated Current: 100A
- Protection Rating: IP65
- Mounting Method: Surface mount
- Material: UV-resistant PC/ABS polymer
- Fire Resistance: 650°C scorching-wire resistance
- Compatible Devices: MCBs, RCBOs, RCDs and isolators
- Operating Temperature: -25°C to +40°C
- Standards: IEC 60670 and IEC 61439
- Cable Entry: Gland holes can be opened to suit installation requirements
- Dimensions (H x L x W): 100mm x 200mm x 219mm
- Weight: 1.05 kg
Key Features
- IP65 protection against dust ingress and water jets
- UV-resistant polymer enclosure for outdoor use
- Suitable for MCB, RCBO, RCD and isolator installation
- Prefabricated DIN rail and terminal arrangement
- Flame-retardant, self-extinguishing enclosure material
- Compact 9-module, single-row configuration
- Suitable for residential, commercial and industrial power distribution
Professional Installation Requirements
- Installation and electrical connection should be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical requirements. Cable entries must be sealed correctly to maintain the IP65 rating.
Applications
- Outdoor electrical distribution
- Industrial control and power distribution installations
- Residential and commercial sub-distribution boards
- MCB, RCBO, RCD and isolator enclosures
- Damp, dusty or weather-exposed electrical installations
Standards & Compliance
- AS/NZS 61439.3:2016 is the relevant Australian/New Zealand standard for distribution boards intended to be operated by ordinary persons; final assembly conformity and installation requirements must be verified before use
Environmental Benefits
- UV-resistant enclosure material can extend service life and reduce replacement waste
- Polymer enclosure components may be recyclable subject to local recycling facilities
- Durable IP65 protection helps protect installed electrical equipment and reduce premature component replacement
Warranty Information
CHINT product warranty terms vary by product and sales agreement. CHINT documentation commonly specifies 12 months from purchase or 18 months from production, whichever occurs first; confirm the applicable Australian warranty with the authorised distributor.
Available Now
Available through authorised CHINT distributors in Australia.
