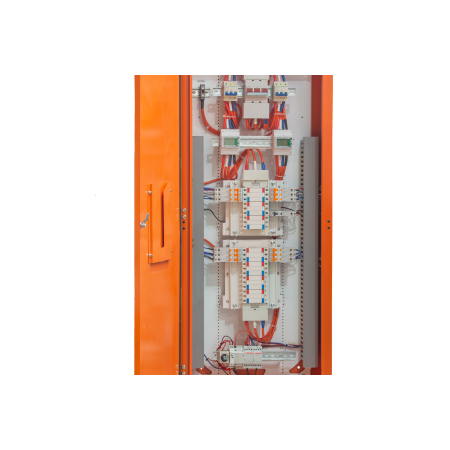

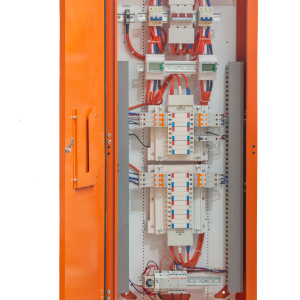

Distribution Board IP66 18P 250A 600x600x200mm Orange Bovara
Bovara IP66 distribution board features 18 Pole chassis, 250A isolator, 600H x 600W x 200D zinc anneal body, X15 orange gloss and one triangle quarter-turn lock.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bovara DBC1C18 Distribution Board Enclosure, VAL Distribution Board, IP66 Electrical Distribution Board
Technical Specifications
- Rated Current: 250A isolator
- Chassis Capacity: 18 poles
- Rated Voltage: 230–415V AC
- Ingress Protection: IP66
- Material: Zinc-anneal steel body
- Finish: Orange high-gloss X15 powder coating
- Cable Entry: Top and bottom entry provisions
- Locking: Single triangular quarter-turn key lock
- Gland Plates: 3mm aluminium gland plates
- Included Components: Earth bar, neutral bar and pole fillers
- Escutcheon Clearance: Accommodates devices up to 51mm
- Mounting: Wall-mounted enclosure
- Dimensions (H x L x W): 600mm x 215mm x 600mm
- Weight: 34 kg
Key Features
- IP66 enclosure protection for demanding indoor and outdoor electrical environments
- Integrated 250A isolator and 18-pole chassis
- Durable zinc-anneal steel construction
- High-visibility orange X15 powder-coated finish
- Top and bottom cable entry provisions
- Earth and neutral bars included
- Single triangular quarter-turn key lock
- Internal hinged escutcheon for device access
- Custom pre-wired configurations available
Professional Installation Requirements
- Installation, wiring and energisation must be performed by a licensed electrician. The completed assembly must be selected, configured and verified in accordance with AS/NZS 61439 and installed in accordance with AS/NZS 3000.
Applications
- Commercial distribution boards
- Industrial sub-boards and switchboard assemblies
- Building services and plant room power distribution
- Outdoor electrical distribution installations
- Electrical infrastructure requiring IP66 enclosure protection
Standards & Compliance
- AS/NZS 61439.2:2016 for low-voltage switchgear and controlgear assemblies, as listed by the manufacturer
- AS/NZS 3000:2018 for electrical installation and wiring requirements
- AS 60529 for the IP66 enclosure classification
Environmental Benefits
- Zinc-anneal steel and aluminium gland plates are recyclable at end of service life
- Powder-coated construction helps resist corrosion and extend product service life
- Durable enclosure construction can reduce replacement frequency and associated material waste
Warranty Information
Bovara does not publish a specific warranty period for this product. Warranty claims are subject to the supplier’s sale conditions and applicable Australian Consumer Law; confirm terms before purchase.
Available Now
Available through authorised Bovara distributors in Australia.
