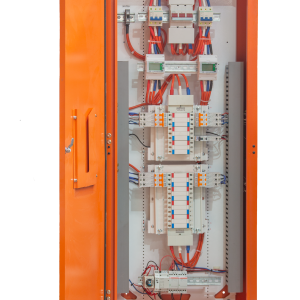

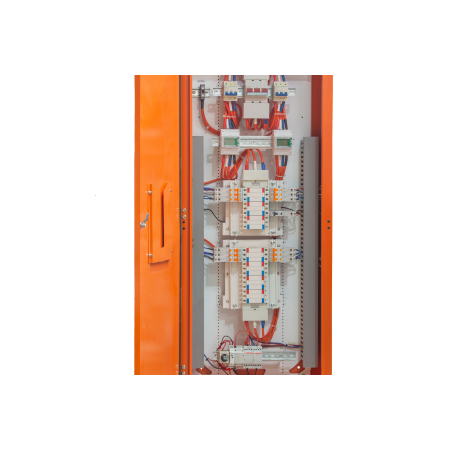

Distribution Board IP66 36P 250A 800x600x200mm Orange Bovara
Bovara IP66 distribution board features 36 Pole chassis, 250A isolator, 800H x 600W x 200D zinc anneal body, X15 orange gloss and one triangle quarter-turn lock.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bovara DBC1C36 Distribution Board, 36-Pole Distribution Board Enclosure, IP66 Switchboard Enclosure, 250A Electrical Distribution Board
Technical Specifications
- Product Code: DBC1C36
- Rated Current: 250A
- Rated Voltage: 230–415V AC
- Chassis Capacity: 36 poles
- Degree of Protection: IP66
- Enclosure Material: Zincanneal steel
- Finish: X15 orange gloss powder coating
- Locking System: Single triangle-key quarter-turn lock
- Cable Entry: Top and bottom entry provisions
- Internal Components: Earth and neutral bars included
- Door Type: Internally side-hinged, key-lockable door
- Escutcheon Clearance: Accommodates devices up to 51mm
- Mounting Method: Wall mounted
- Dimensions (H x L x W): 800mm x 215mm x 600mm
- Weight: 35 kg
Key Features
- IP66 protection for demanding indoor and outdoor electrical installations
- 36-pole chassis for circuit protection and switching equipment
- 250A isolator for high-capacity distribution applications
- Durable zincanneal steel construction
- Orange X15 gloss powder-coated finish
- Single triangle-key quarter-turn lock
- Top and bottom cable entry provisions
- Earth and neutral bars included
- Pole fillers included
- Supports custom pre-wired configurations
Professional Installation Requirements
- Installation, wiring, testing and commissioning must be carried out by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's assembly requirements. The completed assembly should be verified against the applicable AS/NZS 61439 requirements before energisation.
Applications
- Commercial electrical distribution systems
- Industrial switchboards and control panels
- Building services distribution
- Outdoor electrical installations requiring IP66 protection
- High-capacity power distribution with multiple outgoing circuits
- Custom-built and pre-wired switchboard assemblies
Standards & Compliance
- AS/NZS 61439.2:2016 – Low-voltage switchgear and controlgear assemblies
- AS/NZS 3000:2018 – Electrical installations, applicable to installation and wiring of the completed board
Environmental Benefits
- Zincanneal steel construction is recyclable at end of service life
- Powder-coated finish helps protect against corrosion and extend service life
- Durable enclosure construction can reduce replacement frequency and associated material waste
Warranty Information
No specific Bovara manufacturer warranty period is publicly stated. Warranty coverage should be confirmed with Bovara or the authorised distributor at the time of purchase.
Available Now
Available through authorised Bovara distributors in Australia.
