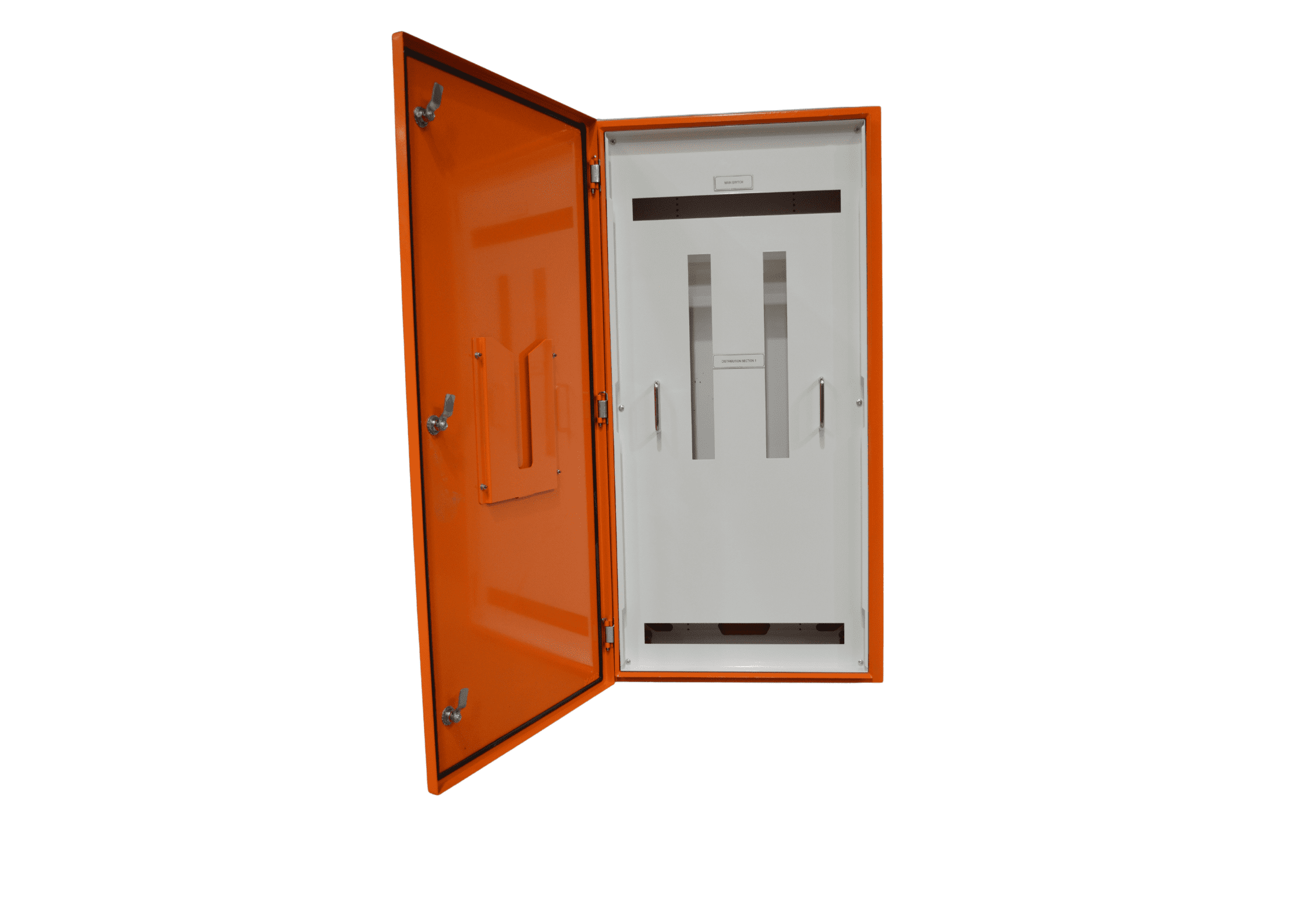

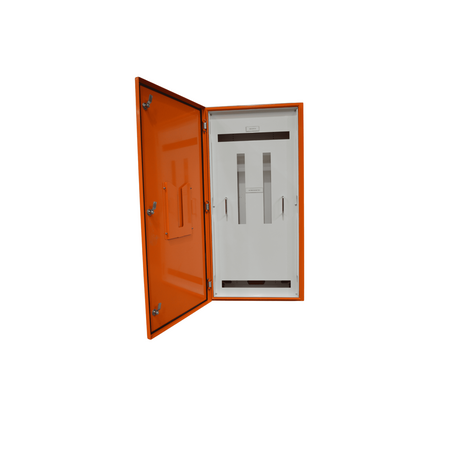

Distribution Board IP66 48P 250A 1000x600x200mm Orange Bovara
Bovara IP66 distribution board features 48 Pole chassis, 250A isolator, 1000H x 600W x 200D zinc anneal body, X15 orange gloss and one triangle quarter-turn lock.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: IP66 Distribution Board, Electrical Switchboard Enclosure, 48-Pole Distribution Board, 250A Switchboard Enclosure
Technical Specifications
- Model: DBC1C48
- Rated Current: 250A
- Rated Voltage: 230–415V
- Chassis Capacity: 48 poles
- Ingress Protection: IP66
- Enclosure Material: Zincanneal steel
- Finish: Orange X15 high-gloss powder coating
- Door Type: Internally side-hinged, lockable door
- Locking: Triangle-key quarter-turn lock
- Cable Entry: Top and bottom entry provisions
- Gland Plates: 3mm aluminium gland plates
- Included Components: Earth bar, neutral bar and pole fillers
- Escutcheon Clearance: Accommodates devices up to 51mm
- Mounting: Wall mounted
- Dimensions (H x L x W): 1000mm x 215mm x 600mm
- Weight: 40 kg
Key Features
- IP66 protection against dust and powerful water jets
- Integrated 250A isolator
- 48-pole chassis for commercial and industrial distribution applications
- Durable zincanneal steel construction
- High-visibility Orange X15 powder-coated finish
- Top and bottom cable-entry provisions
- Earth and neutral bars included
- Triangle-key quarter-turn locking mechanism
- Internal escutcheon lift for easier device installation
- Custom pre-wired configurations available
Professional Installation Requirements
- Installation, assembly, wiring and commissioning must be performed by a licensed electrician or suitably qualified electrical contractor in accordance with AS/NZS 3000, AS/NZS 61439.2, the manufacturer's instructions and applicable supply-authority requirements.
Applications
- Commercial electrical distribution
- Industrial electrical distribution
- Outdoor and exposed electrical installations
- Low-voltage switchboard and distribution assemblies
- Construction, infrastructure and facility power distribution
Standards & Compliance
- AS/NZS 61439.2:2016 for low-voltage switchgear and controlgear assemblies
- AS/NZS 3000:2018 for electrical installation requirements
Environmental Benefits
- Zincanneal steel and aluminium components can be recovered and recycled at end of service life
- Durable powder-coated steel construction supports extended product service life and reduces replacement waste
- Suitable for organised low-voltage distribution systems that can support efficient electrical infrastructure design
Warranty Information
Bovara-specific warranty terms are not publicly published. Australian Consumer Law guarantees apply, with additional warranty details available from the authorised seller or distributor.
Available Now
Available through authorised Bovara distributors in Australia.
